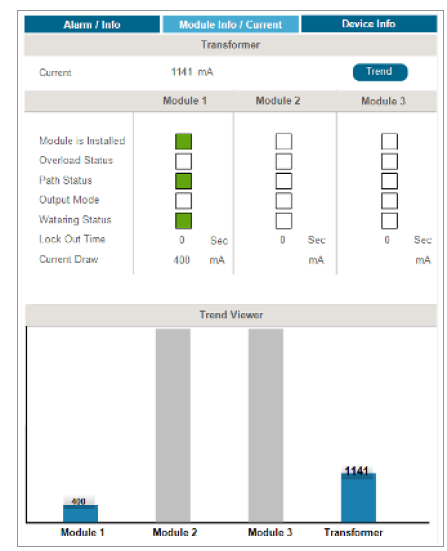

The GUI provides comprehensive monitoring and control capabilities for your irrigation system. Key features include real-time current readings, system status indicators, and future trend monitoring capabilities.
Current Section
• Displays real-time electrical current measurements in milliamperes (mA) affecting your irrigation system
• Monitor this value continuously to ensure safe operation
Module Section
• Divided into two subsections: Module 1 and Module 2
• Checkboxes indicate active statuses for each module
Module
• Path Status Checkbox: Indicates path integrity
• Overload Status Checkbox: Activates overload protection
• Watering Status Checkbox: Monitors the watering process
• Lock Out Time Checkbox: Engages a timing mechanism
• Output Mode Checkbox: Output mode
Trend Section
• Intended for historical data trends
Bar Graphs
• Visual Representation: Graph: Shows specific current values in real time
