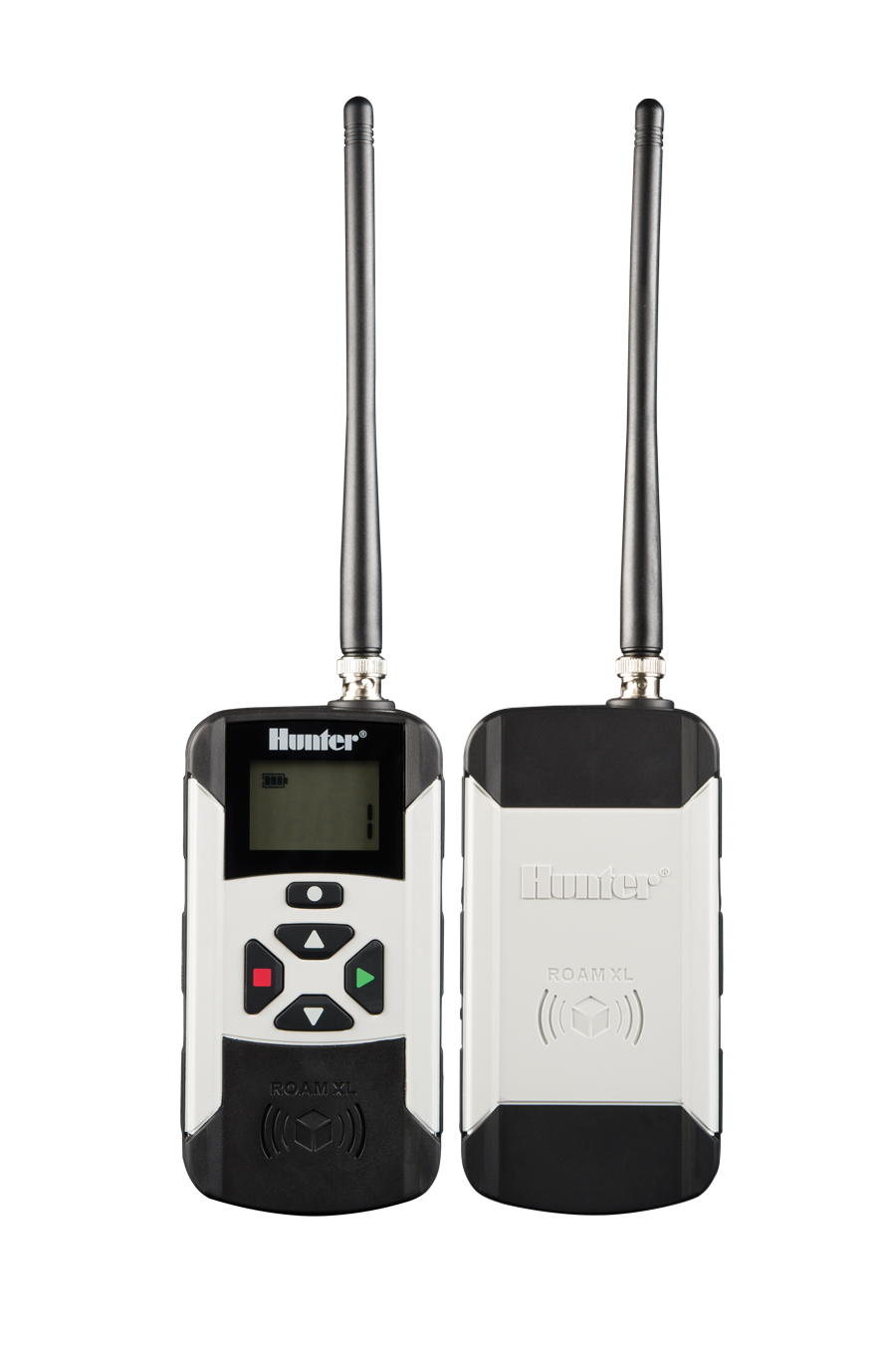

Roam remote and reciver
Mount for smartport

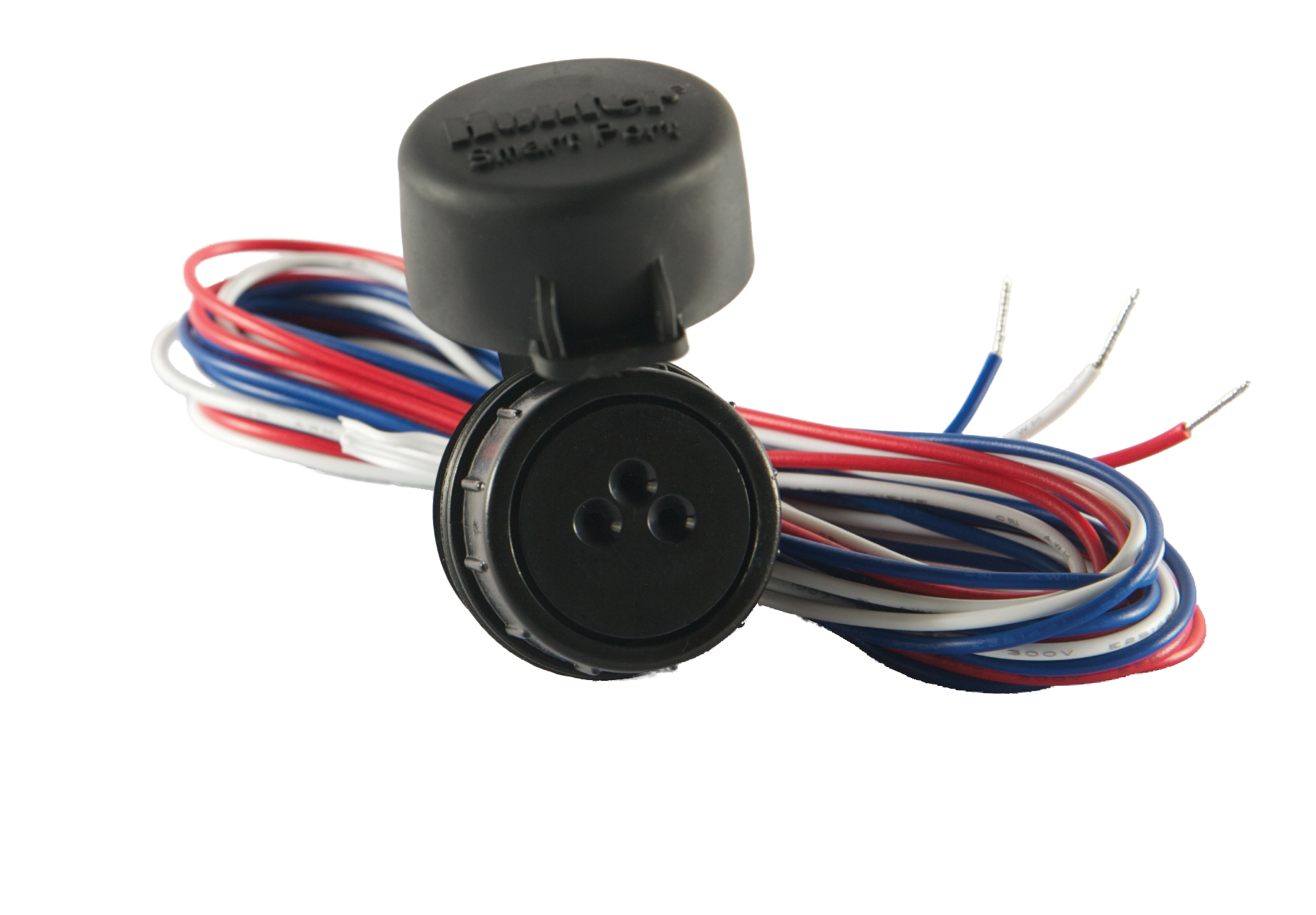

Smart Port for Roam
Roam xl cable
Mira mar test

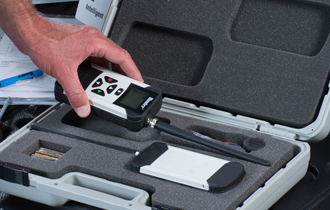

Roam xl placed in case
Roam on job site

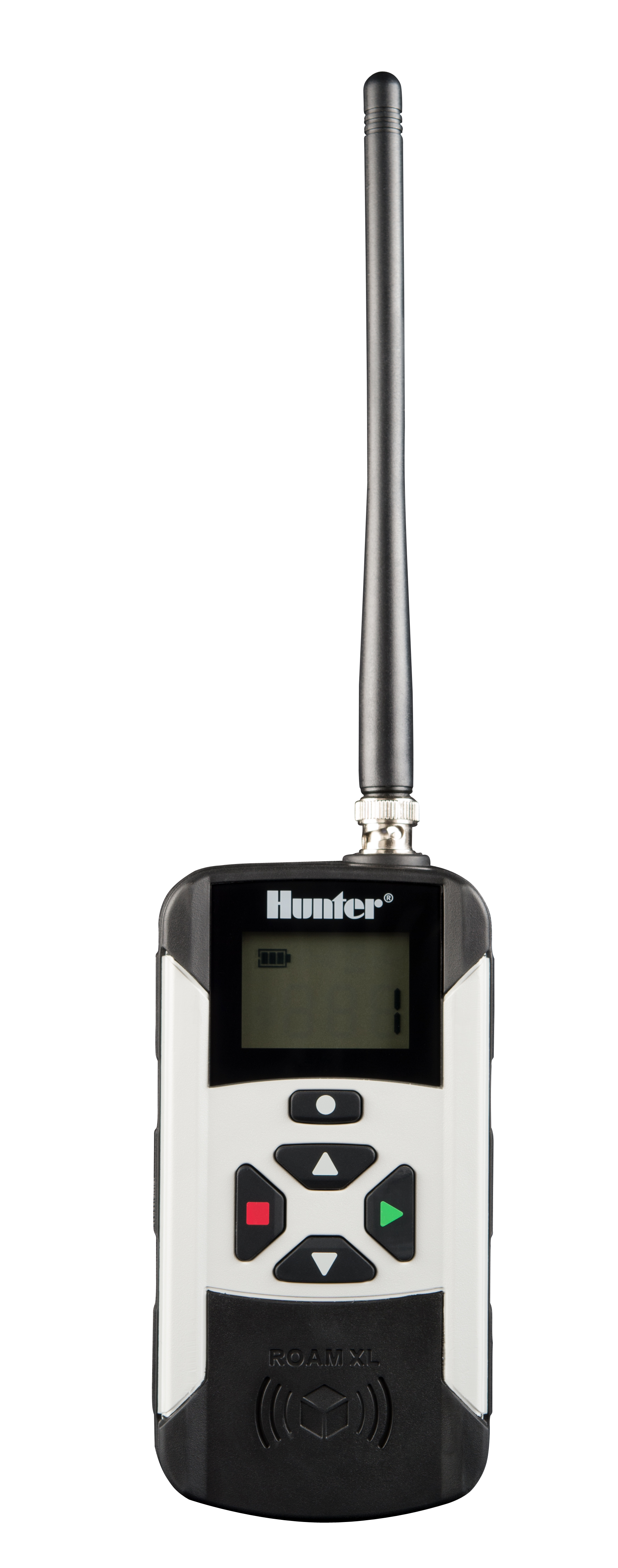

Roam XL

The ROAM XL Remote has been replaced by the ROAM LR Remote.
Year Discontinued 2025
Product Line
Discontinued Models

Models

User-installed options

Model Description Add to List
ROAMXL-CASE +
ROAM-WH

SmartPort Wiring Harness for ROAM, ROAM XL and ROAM LR Remote connections, 1.8 m cable

 +
ROAM-SCWH

SmartPort Wiring Harness for ROAM, ROAM XL and ROAM LR Remote connections, 7.5 m shielded cable

 +
ROAM-XL-EXT

ROAM XL Antenna Extension Kit, 7.5 m cable and mounting hardware

 +
Roam XL
Roam XL
Roam XL
User installed options

Contact your local distributor for product availability and ordering.

Specifications

Operating Specifications

  • Range: 3 km (line of sight) from transmitter to receiver
  • Transmitter power source: 4 x AAA batteries included
  • Receiver power source: 24 VAC, 0.010 A
  • System operating frequency: 27 MHz
  • SmartPort™ installation: maximum 15 m from controller
  • FCC approved (not available in EU and some other countries, check local regulations)
  • Warranty period: 3 years

 Download Product Spec Sheet

Videos

Extending the Hunter SmartPort

This video covers the SmartPort connector that is wired to terminals on the controller. It allows quick connection to any Hunter remote.

Resetting the Hunter ROAM XL Remote

This video shows you how to quickly reset your Hunter ROAM remote.

Hunter ROAM with ICR

This video shows you how you can use your Hunter ROAM XL transmitter with an existing ICR receiver.

Hunter ROAM remote QuickStart

This video shows you how to get up and running with some quick start features for your Hunter ROAM remote.

All Product Videos

Features

The ROAM XL was discontinued in 2025. The ROAM LR is recommended as its replacement. The long-range ROAM LR Remote boasts the same 5 km line-of-site range and is compatible with most SmartPort® enabled Hunter controllers. ROAM LR transmitters are not compatible with ROAM XL receivers, and vice versa, as each system operates on different radio frequencies. The ROAM XL is warrantied for 3 years from the manufacturing date code. For detailed information on how to find and interpret your manufacturing date code, download and review our Warranty Date Code Reference Guide.

Key Benefits

Up to 3 km range for remote manual operation of Hunter irrigation systems
Compatible with Hunter X-Core™, X2™, Pro-C™, HPC, ICC2, HCC, I-Core™, ACC, and ACC2 controllers
Manually start individual stations or programs for quick maintenance checks and troubleshooting
128 programmable addresses available prevents any potential cross-communication with other wireless devices
Set manual run times from 1 to 90 minutes, without overwriting regular automatic programming
Manual operation up to 240 stations provides flexibility for larger projects
Rugged and water-resistant transmitter includes a large LCD display with simple push-button operation and a battery-life indicator

Advanced Features

The Roam XL has a heavy duty aluminum and rubber shell, which ensures reliable operation day in and day out

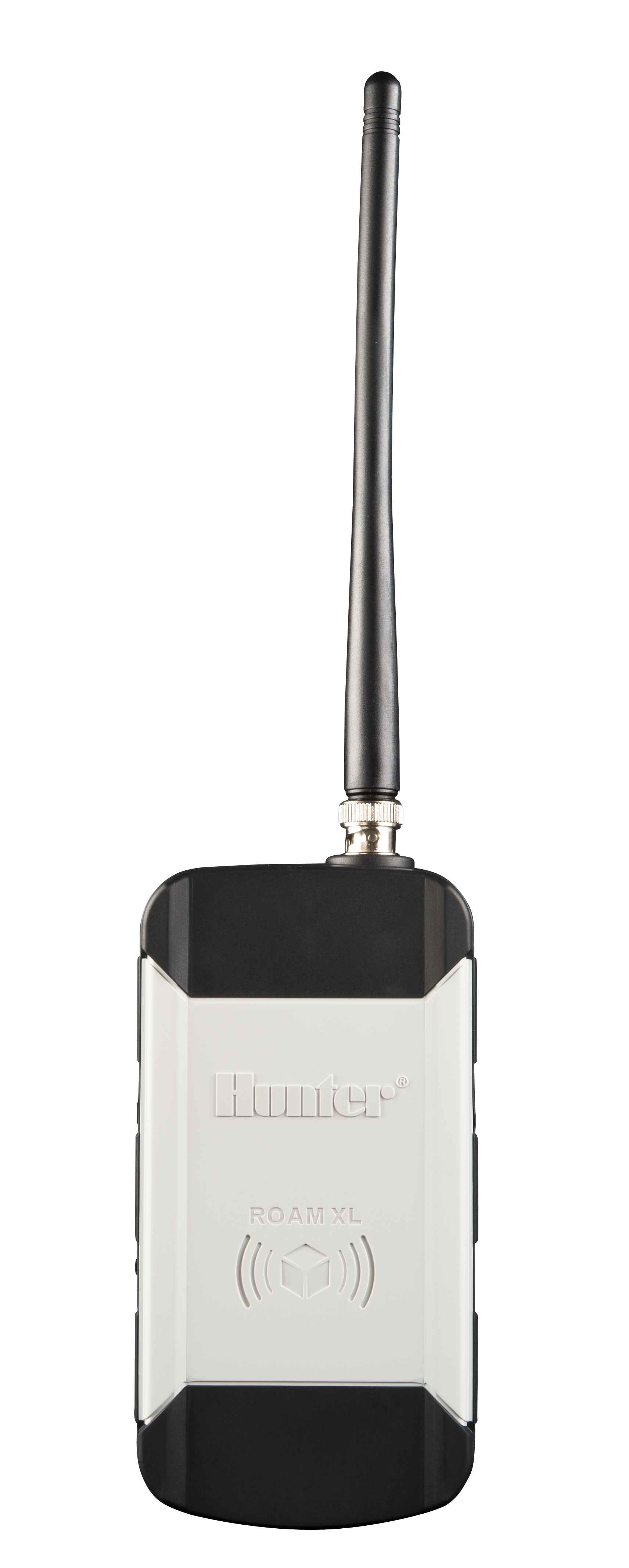

Roam XL Receiver

The water-resistent Roam XL is built to work even when exposed to sprinkler spray

The Roam XL signal is strong enough to go through a buildings and still communicate with the controller. Within line of sight, the Roam XL operate up to 3 km from the controller. The BNC antenna can be removed for easy transport or replaced with an array of antenna options if further distance is needed

Roam XL Antenna

The Roam XL transmitter and receiver both work with ICR transmitters or receivers. So, if you upgrade your ICR remote to Roam XL, you can still use your old ICR receiver. Or if you bring an ICR to a site that has a RoamXL receiver, they will work together.

Roam XL and ICR Remotes

Documents

Select Type

  • All Documents
  • Manuals
  • Marketing
  • Specifications
  • Replacement Parts
Show all documents

Support

Photos

Application Photos

Roam Xl in use
Roam Xl in use
Title:

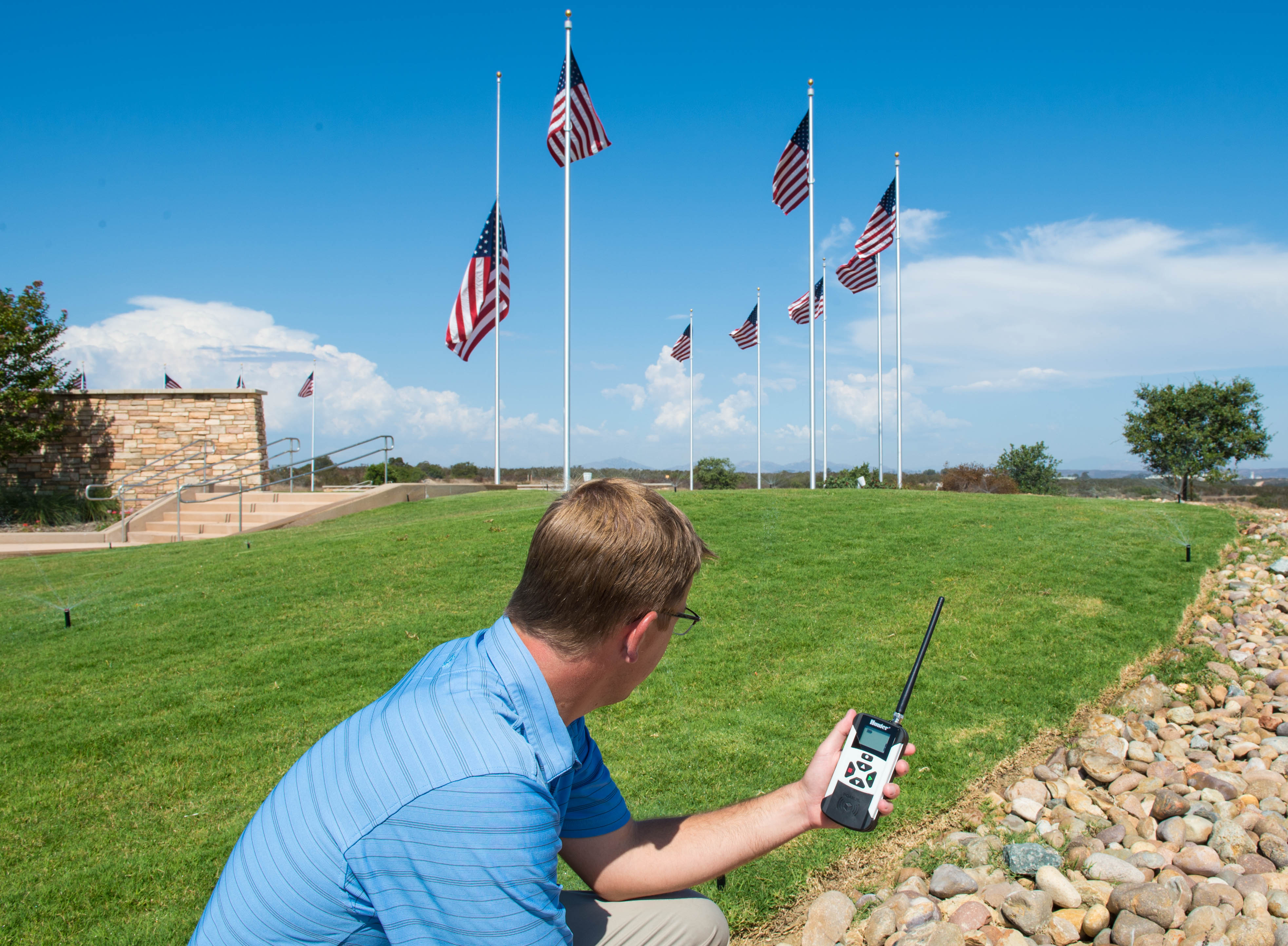

Roam Xl Mira Mar 2
File:
mira_mar-15
Classification:
Action Shot
Product Line:
Controllers
Products:
Roam XL
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

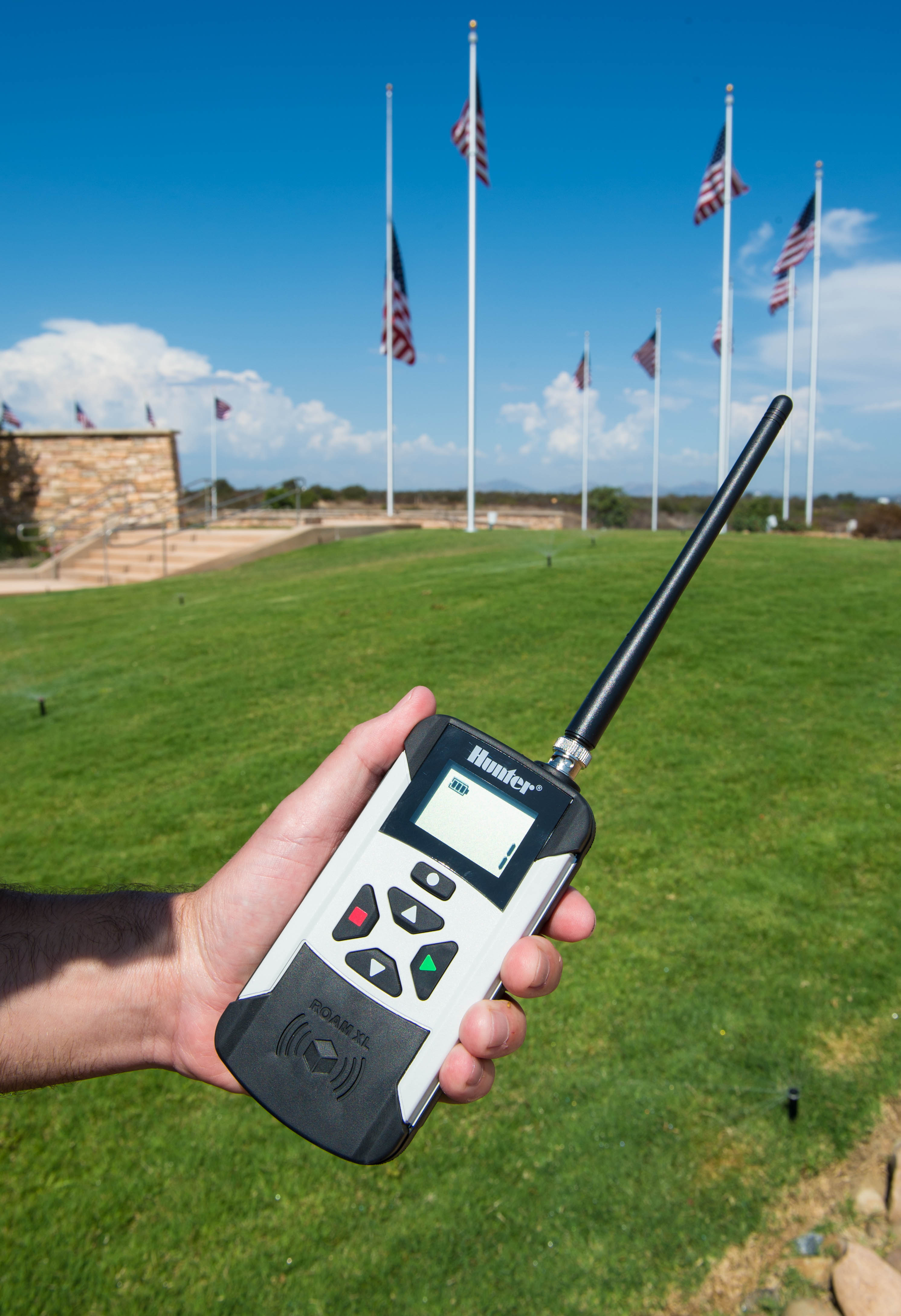

Roam Xl in use
Roam Xl in use
Title:
Roam Xl Mira mar1
File:
mira_mar-14
Classification:
Action Shot
Product Line:
Controllers
Products:
Roam XL
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

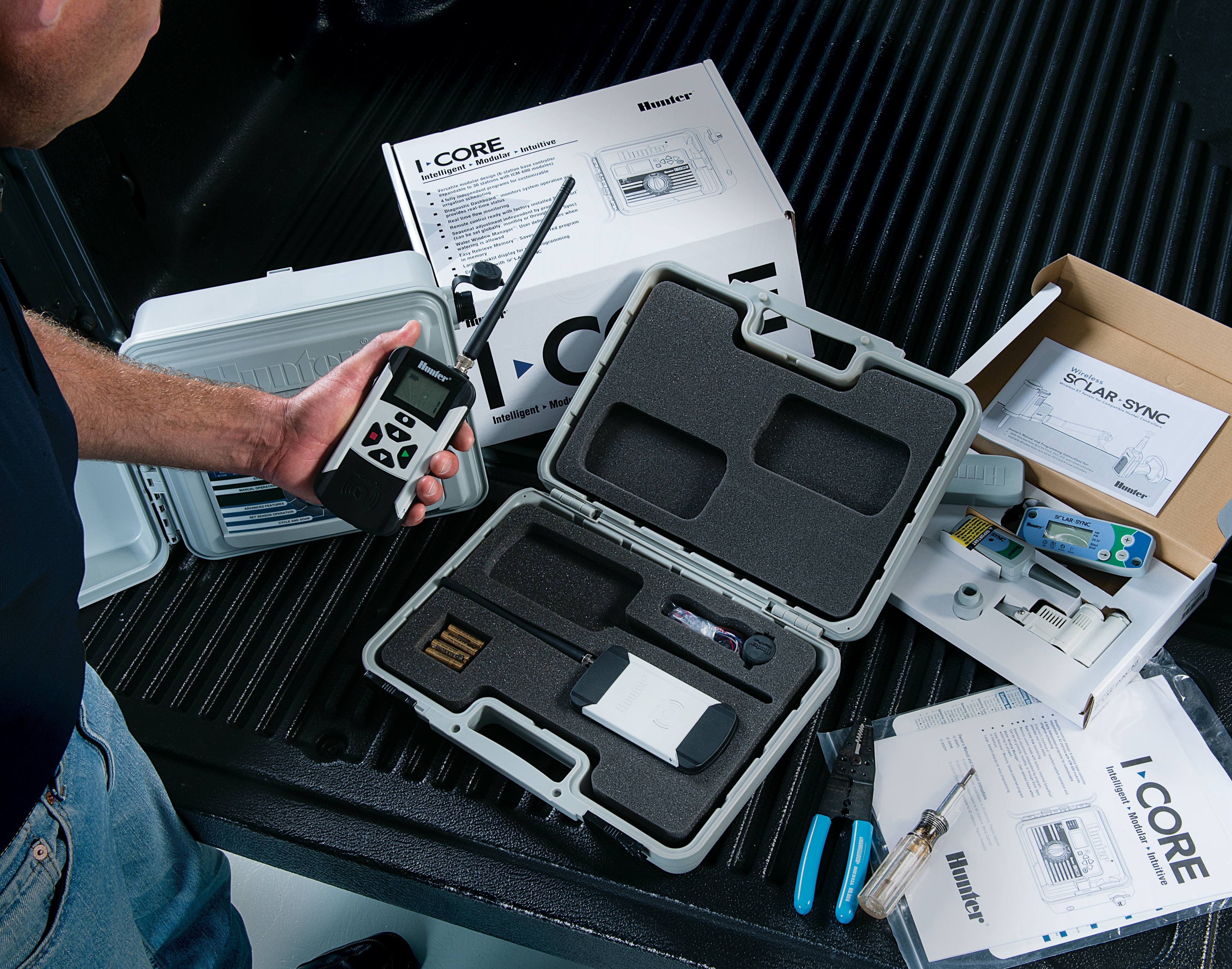

roam xl out of the case
roam xl out of the case
Title:
Roam Xl setup
File:
roam-xl-wascher
Classification:
Action Shot
Product Line:
Controllers
Products:
Roam XL
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

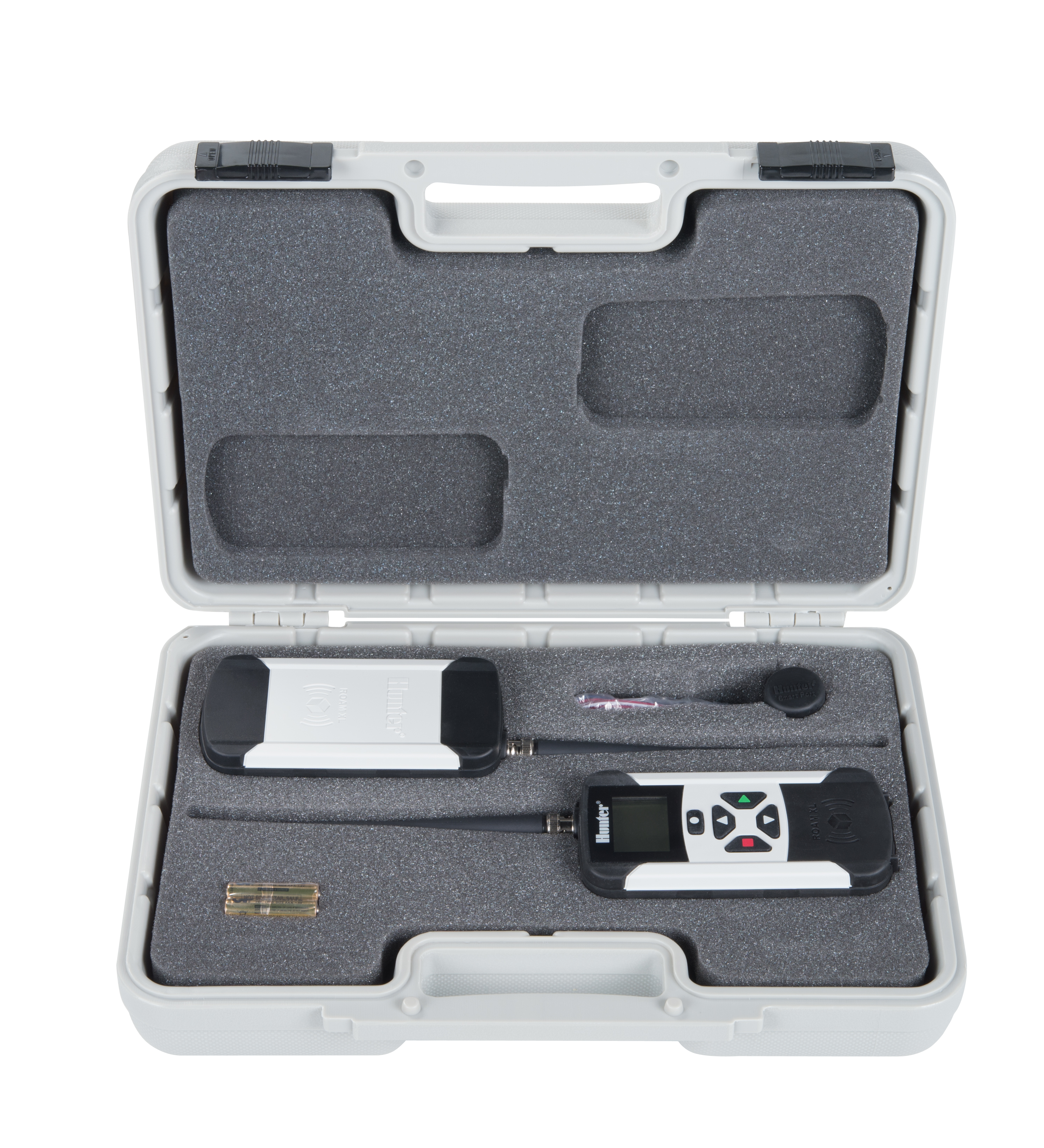

Roam XL Irrigation Remote
Roam XL Irrigation Remote
Title:
Roam XL in case
File:
Roam XL Irrigation Remote
Classification:
Action Shot
Product Line:
Remotes
Products:
Roam XL
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

Studio Photos

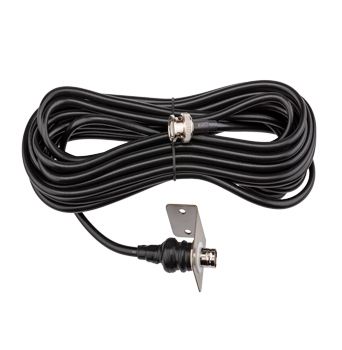

Roam xl cable
Roam xl cable
Title:
Roam XL Ext
File:
roamxl-ext
Classification:
Studio
Product Line:
Remotes
Products:
Roam XL
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:

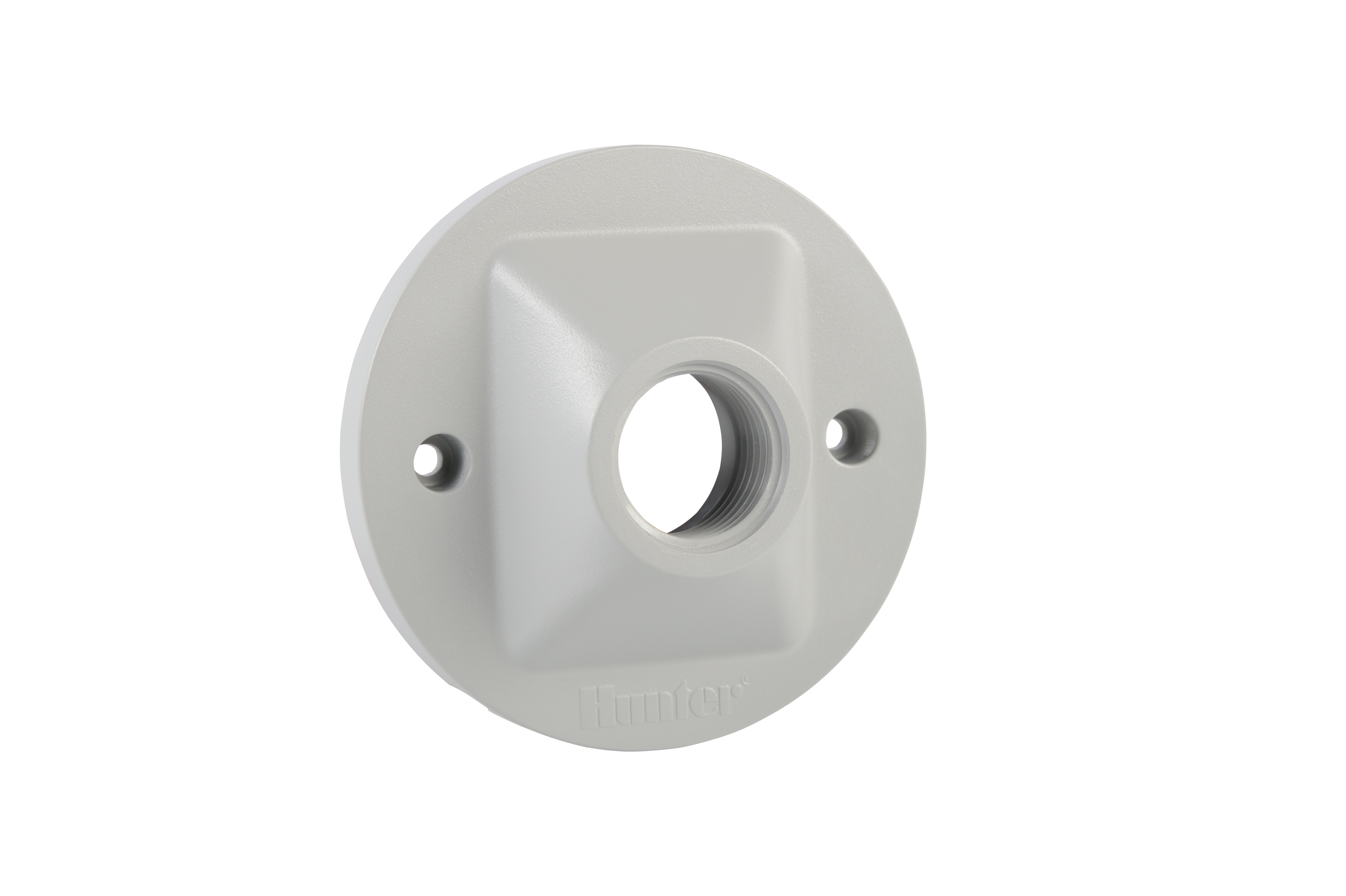

Smartport Mount
