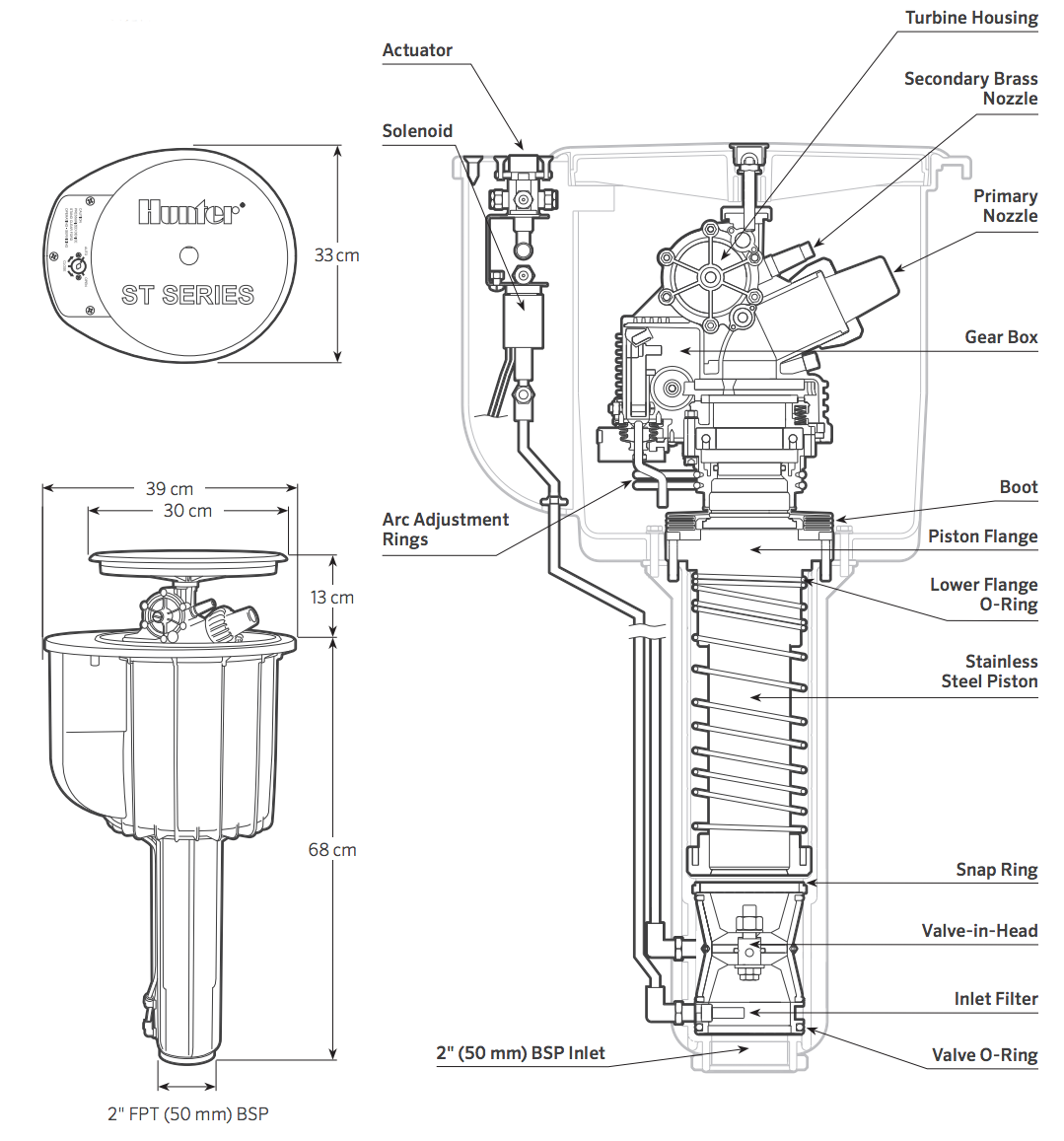

Product Dimensions:
- Overall height: 68 cm
- Pop-up height: 13 cm
- Exposed diameter: 33 cm x 39 cm
- Inlet size: 2" (50 mm) BSP*
*Use P/N 241400SP adapter to 2" (50 mm) PVC pipe if needed.
Operating Specifications:
- Radius: 32 to 48 m
- Flow: 21.0 to 58.8 m3/hr; 350 to 980 l/min
- Operating pressure range: 4.0 to 8.0 bar; 400 to 800 kPa
- Speed of rotation: 80 seconds at 6 bar (single 180° sweep)
