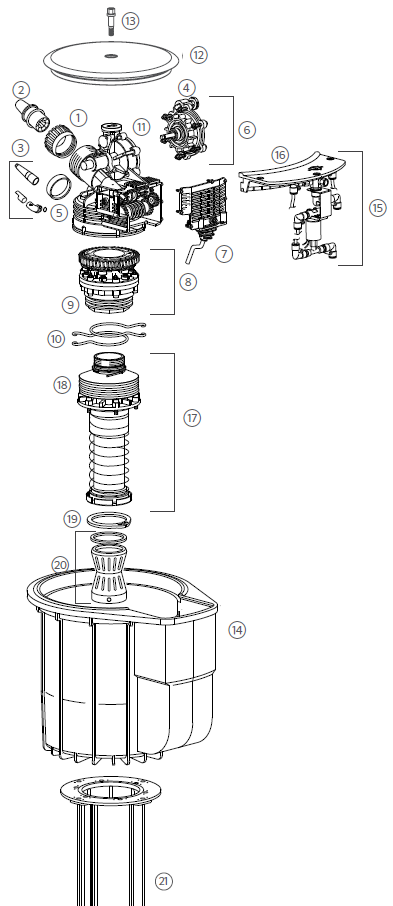

| Item | Description | Catalog No. | |
|---|---|---|---|
| 1 | Primary Nozzle Retainer | 502402SP | |
| 2 | Primary Nozzle Kit | 16 | 784800SP |
| 18 | 784801SP | ||
| 20 | 784802SP | ||
| 22 | 784803SP | ||
| 24 | 784804SP | ||
| 3 | Secondary Nozzle Kit | Female-threaded nozzle with elbow | 10005900SP |
| Male-threaded nozzle | 10006100SP | ||
| 4 | Speed Control Knob | 510101SP | |
| 5 | Gearbox Cover | 502455 | |
| 6 | Turbine Assembly Kit | 10006200SP | |
| 7 | Reversing Kit | 510164SP | |
| 8 | Turret Inlet Kit | 510167SP | |
| 9 | Threaded Rotor Inlet | 893600SP | |
| 10 | Arc Rings (2) | 205617SP | |
| 11 | Gear Drive Assembly | 881900SP | |
| 12 | Rotor Cover Kit | 204205SP | |
| 13 | Rotor Cover Bolt, Plastic (7/24 or newer) | 10077900SP | |
| 14 | Upper Body Kit | 10006300SP | |
| 15 | Solenoid Actuator Kit | 10006400SP | |
| 16 | Actuator Cover | 10006500SP | |
| 17 | Riser Assembly | 502436SP | |
| 18 | Rubber Boot | 502423 | |
| 19 | Snap Ring | 10006600SP | |
| 20 | Valve-in-Head with Stainless Steel Ring | 10006700SP | |
| 21 | Lower Body Kit, BSP | 10006800SP | |
| 22 | Gear Drive Insertion/Removal Tool | 517600SP | |
| 23 | Valve-in-Head Insertion/Removal Tool | 10000100SP | |
| 24 | Snap Ring Removal Tool | 251000SP | |
