The radius, flow, and trajectory of the ST-1700 Rotor should be considered when designing and installing irrigation systems.
| Max Height for #20 Preinstalled Nozzle | |||
|---|---|---|---|
| Nozzle | Pressure (Bar) | Max Height (m) | Distance at Max Height (m) |
| #20mm Nozzle | 4.0 | 7.0 | 19.5 |
| 5.0 | 7.5 | 22 | |
| 6.0 | 8.0 | 24.5 | |
| 7.0 | 8.5 | 25.5 | |
| 8.0 | 9.0 | 26.5 | |

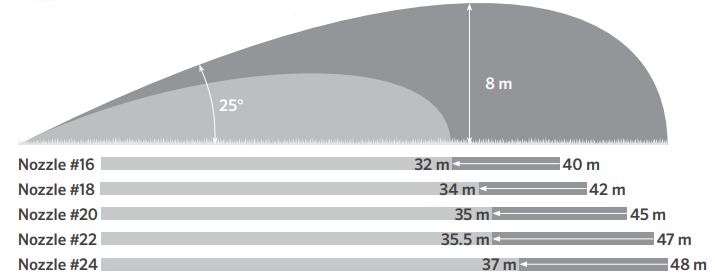

Trajectory Chart
