Bring two-wire technology to more projects than ever before with the revolutionary, low-cost, hassle-free EZ Decoder System for HCC, ICC2, HPC and Pro-C controllers.
Number of Stations 54 or 28
Type Modular Decoder
Platform HCC, ICC2, HPC, and Pro-C Controllers
Product Line
Controllers
  • HCC and ICC2 Controllers: Up to 54 stations, plus master valve
  • HPC and Pro-C Controllers: Up to 32 stations, plus master valve (28 stations if two-wire only)
  • No special wire or connectors required
  • Allows hybrid operations of conventional and decoder stations
  • Compatible with any direct-burial wire for maximum flexibility

Models

Popular Models


EZ-1

Single-station EZ Decoder with status LED
Single-station EZ Decoder with status LED
EZ-LR

EZ-LR

Single-station, long-range EZ Decoder with status LED
Single-station, long-range EZ Decoder with status LED

EZ-DM

EZ Decoder Output Module for HCC and ICC2 Controllers, up to 54 stations
EZ Decoder Output Module for HCC and ICC2 Controllers, up to 54 stations

EZ-DT

Wireless diagnostic tool for EZ Decoder Systems
Wireless diagnostic tool for EZ Decoder Systems
Model Description Add to List
EZ-1 Single-station EZ Decoder with status LED +
EZ-LR Single-station, long-range EZ Decoder with status LED +
EZ-DM EZ Decoder Output Module for HCC and ICC2 Controllers, up to 54 stations +
PC-DM EZ Decoder Output Module for HPC and Pro-C Controllers +
EZ-DT Wireless diagnostic tool for EZ Decoder Systems +
Showing 1 - 5 of 5

User-installed options

Model Description Add to List
DECSTAKE10

Universal Decoder Stake Kit, 10 per carton

 +
EZ Decoder System
EZ Decoder System
EZ Decoder System
User installed options

Contact your local distributor for product availability and ordering.

Specifications

OPERATING SPECIFICATIONS

  • Compatible with EZ-DM and PC-DM Decoder Output Modules
  • Two-wire voltage: 24 VAC, 50/60 Hz
  •  IP68, submersible
  • Standard EZ Decoder System wire colours
  • Operating voltage: 24 VAC, 50/60 Hz
  • For use with Hunter 24 VAC solenoids
  • FCC, ISED, CE



Wiring Table
International Wire GaugeEZ-1 one active solenoidEZ-1 two active solenoidEZ-LR one active solenoidEZ-LR two active solenoid
1.00 mm2289 m145 m578 m289 m
1.50 mm2458 m229 m916 m458 m
2.00 mm2689 m 344 m1,378 m689 m
2.50 mm2730 m365m1,460 m730 m
4.00 mm21,160 m580 m2,320 m1,160 m
6.00 mm21,843 m921 m3,686 m1,842 m

User-Installed Options

  • Centralus™ with ICC2 and Pro-C Controllers
  • Hydrawise® with HCC and HPC Controllers
  • DECSTAKE10 Universal Decoder Stake Kit, 10-pack

 Download Product Spec Sheet

  Download Written Specifications (in English)

Videos

Hunter EZ-LR Decoder Field Knowledge

In this video, you’ll learn the key differences between the EZ-LR and EZ-1 Decoders.

Hunter EZ-LR Decoder

Expanding the reach of your Hunter EZ Decoder System has never been easier.

HUNTER EZ DECODER SYSTEM: How to Configure EZ Decoders for HCC and ICC2 Controllers

To program an EZ-1 decoder, start by installing the EZDM into any station output slot within an ICC2 or HCC chassis (with the power off).

Hunter EZ Decoder System Product Guide. The simple two-wire solution.

All Product Videos

Features

Cost and complexity have often limited decoder technology to higher-end systems. However, with the revolutionary EZ Decoder System (EZDS), you get all the advantages of two-wire installations with simpler, more cost-effective technology — so you can bring the power of two-wire control to more projects than ever before.

The EZDS is compatible with all the features of the Hydrawise® enabled HCC and HPC Controllers, Centralus™ enabled ICC2 Controller, and trusted Pro-C® Controller. Plug in either the two-wire PC-DM or EZ-DM Decoder Output Module to enable up to 28 (HPC/Pro-C) or 54 (HCC/ICC2) stations on a single pair of wires. Then simply place EZ Decoders at each valve!

EZ Decoders are small, waterproof, and come with colour-coded wiring and a convenient LED status light. They don’t require special wire or connectors to function. Better yet, the system can coexist with conventional output modules, allowing hybrid functionality of both direct-wired valves and decoder operations in the same controller. This technology also permits easy conversion of a conventionally wired system to two-wire using the existing wiring bundle. It’s that easy!

Key Benefits

Number of stations: HPC/Pro-C: Up to 28, plus master valve ICC2/HCC: Up to 54, plus master valve
No special wire or connectors required
No special grounding or surge arrestors required in-line to maximize time and money savings during installation
Programmable decoders with no need to input individual serial numbers
P/MV can activate via the two-wire path for pump stations or distant master valves
Permits hybrid operations of conventional and decoder stations for added flexibility
All EZ Decoders have built-in status LEDs for positive diagnostics
Battery operated EZDT reads decoder status, detects faults, and can even update controller firmware

Charts

Hunter Two-Wire/Decoder Comparison

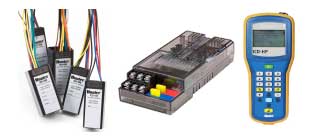

 ICDEZ-LR Family
Product Name

ICD

EZ Decoder System (EZDS)

Compatible Controllers

ACC2
Legacy ACC

HCC & ICC2
(EZDM)

HPC & Pro-C
(PCDM)

Max. Decoder Stations per System

225

54

28

Wire Options

ID1 - 2.5 mm2

ID2 - 4 mm2

Any low-voltage, direct-burial wire will suffice

Maximum Wiring Distance

 3 km

4.5 km

EZ-1: 1,333 m (4 mm2) | EZ-LR: 2,786 m (4 mm2)

Wire Connectors

DBRY-6

Waterproof connections are encouraged

Two-wire Paths Available

3 per 75 station module (9 max.)

EZDM - 2
PCDM - 1

Decoder Station Options

1-, 2-, 4-, 6-station (& ICD-SEN sensor decoder)

Single-station

Earth Grounding Required for Two-Wire Path

Yes

No

Hybrid Conventional/Decoder Operation

No

Yes

Programmable Sensor Decoders

Yes

No

Programmable P/MV Decoders

Yes

Yes

Handheld Programmer/Wireless Diagnostic Tool

ICD-HP

EZ-DT

Warranty

5 years

3 years

Documents

Select Type

  • All Documents
  • Manuals
  • Marketing
  • Specifications
  • Replacement Parts
Show all documents

CAD Installation Details

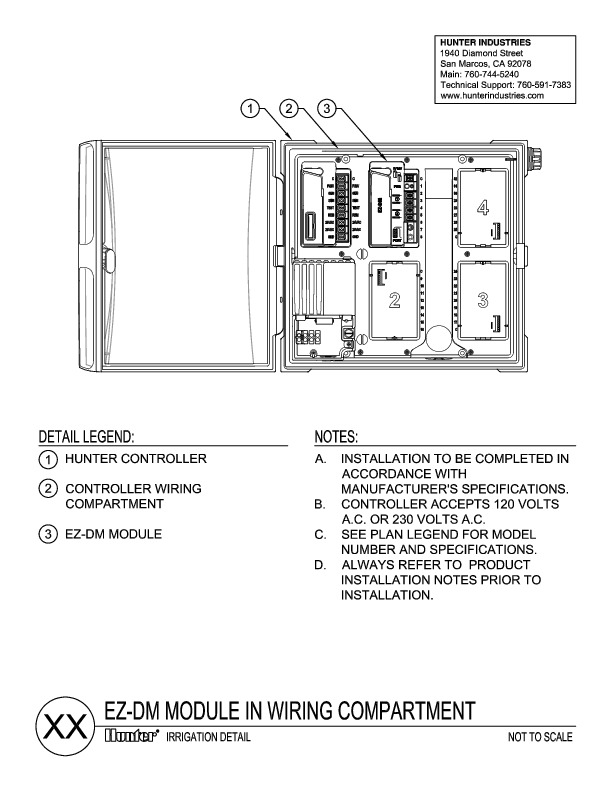

EZ-DM Module In Wiring Compartment DWG DXF PDF
PC-DM Installation Details DWG DXF PDF PDF-A4
PC-DM With PCM-300 Installation Details PDF PDF-A4
CAD EZ-1 Decoder At Anti-Siphon Valve DWG PDF

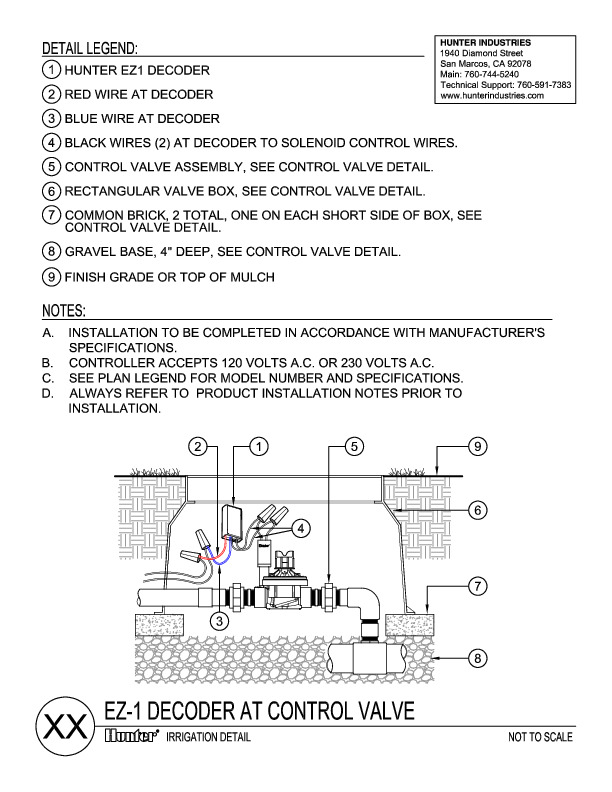

CAD EZ-1 Decoder At Control Valve DWG DXF PDF
CAD EZ-1 Decoder At Inline Valve DWG PDF

CAD Installation Details

Photos

Application Photos

Title:
EZ-DT-109
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZ-DT-108
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZ-DT-102
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZDT 111
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZDT 110
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZDT 107
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZDT 106
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
Title:
EZDT 104
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close
File:
Classification:
Action Shot
Product Line:
Controllers
Products:
EZ Decoder System
Keywords:
product
,
controller
,
Pro-C
,
part
,
module
,
PC-DM
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

Studio Photos

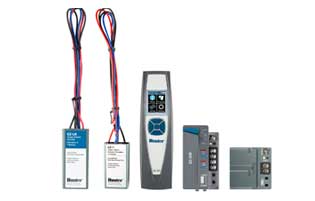

EZ-LR Family of Products
