EZ-1
More information about EZ Decoder System
Brand:
Landscape Irrigation
Product Line:
Controllers
Product Model:
EZ Decoder System
SKU:
EZ1
Description:

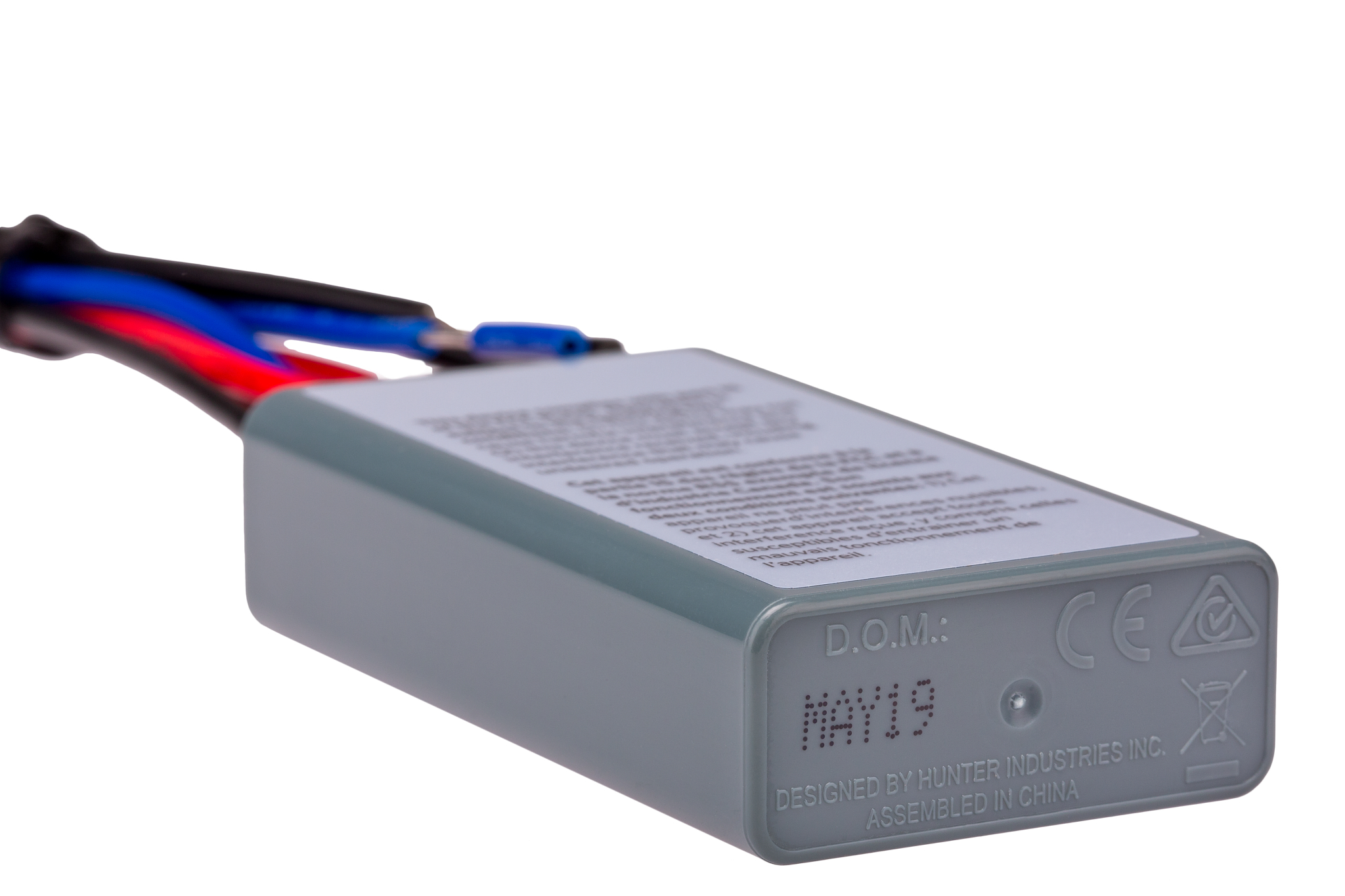

Single-station EZ Decoder with status LED
Description:
Single-station EZ Decoder with status LED
Shipping Information
UPC-A:
0611698542996
Qty. / Bag:
40
Origin:
MADE IN MALAYSIA
Ocean Pallet:
3360
Land Pallet:
2880
Master Carton:
40
Additional Information
Approvals:
IP68
Field Valve Connection:
Two-wire
Flow:
Without Flow
Network Connection Type:
None
Approvals:
Specification Charts
EZLR Comparison Chart
| Hunter Two-Wire/Decoder Comparison | ||||
|---|---|---|---|---|
 |  | |||
| Product Name | ICD | EZ Decoder System (EZDS) | ||
| Compatible Controllers | ACC2 | HCC & ICC2 | HPC & Pro-C | |
| Max. Decoder Stations per System | 225 | 54 | 28 | |
| Wire Options | ID1 - 2.5 mm2 | ID2 - 4 mm2 | Any low-voltage, direct-burial wire will suffice | |
| Maximum Wiring Distance | 3 km | 4.5 km | EZ-1: 1,333 m (4 mm2) | EZ-LR: 2,786 m (4 mm2) | |
| Wire Connectors | DBRY-6 | Waterproof connections are encouraged | ||
| Two-wire Paths Available | 3 per 75 station module (9 max.) | EZDM - 2 | ||
| Decoder Station Options | 1-, 2-, 4-, 6-station (& ICD-SEN sensor decoder) | Single-station | ||
| Earth Grounding Required for Two-Wire Path | Yes | No | ||
| Hybrid Conventional/Decoder Operation | No | Yes | ||
| Programmable Sensor Decoders | Yes | No | ||
| Programmable P/MV Decoders | Yes | Yes | ||
| Handheld Programmer/Wireless Diagnostic Tool | ICD-HP | EZ-DT | ||
| Warranty | 5 years | 3 years | ||
