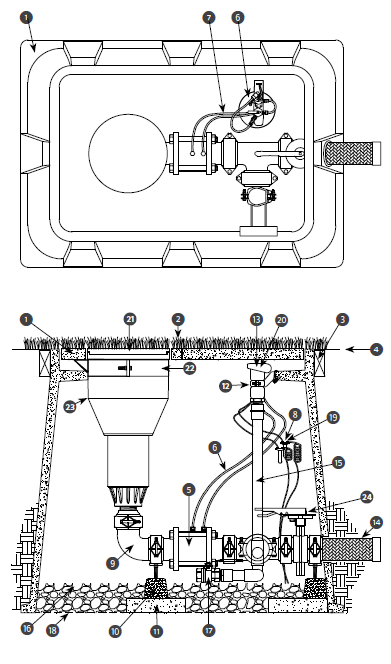

| ITEM | DESCRIPTION |
|---|---|
| 1 | Hunter ST-243636-B composite vault and four–piece polymer–concrete cover set with cast–in openings to support rotor lateral thrust, plus cast-in opening with circular covers for quick coupler and on–off– auto access |
| 2 | Synthetic turf or running track material attached to vault rim and cover set (optional) |
| 3 | 2" x 4" (50 mm x 100 mm) tack glue board or as per specification of all sides |
| 4 | Finished grade set to field perimeter tack glue board or as per specification |
| 5 | Hunter ST-V30-KV ultra-low-loss 3" (80 mm) valve kit with grooved fitting connections |
| 6 | Remote on–off–auto selector and solenoid manifold assembly mounted on vault sidewall |
| 7 | Color-coded control tubing from ST-V30-KV valve to selector switch mounted on the vault side wall |
| 8 | Lead wires from solenoid to waterproof splice connectors |
| 9 | Hunter ST-BVF30-K isolation valve and fitting kit with grooved connections and 500 PSI (35 bar; 3,500 kPa) rated couplings sufficient to connect rotor and control valve to manifold inlet |
| 10 | Hunter ST-SPT-K adjustable manifold support stand adjusted to support manifold weight (2) |
| 11 | 16" x 16" x 2" (400 mm x 400 mm x 50 mm) support blocks as per specification (2) |
| 12 | Mount bracket to the inner lip of the vault and tighten bolts until the bracket is secure |
| 13 | Hunter HQ-5-RC quick coupling valve set directly below circular quick–access port |
| 14 | Hunter ST-H30-K stainless steel flexible inlet pipe |
| 15 | 1" (25 mm) minimum Schedule 80 quick coupler supply piping and fittings or as per specification |
| 16 | Compacted base field materials per specification |
| 17 | Brass manual ball valve included with #9 ST-VBF30-K |
| 18 | Provide drainage via access to the field drainage system |
| 19 | Waterproof connections per specifications between control wire and solenoid lead wires |
| 20 | Top of quick coupler set less than 1/ 2" below the underside of main vault cover to allow key activation from above |
| 21 | Hunter ST-IBS-1600 Infill Barrier System Rubber Cover Kit with trim reference rings to allow heights from standard 11/4" (32 mm) to flat (non–infill or track material) applications |
| 22 | Hunter ST-BKT-1600 rotor hanger and elevation adjustment bracket |
| 23 | Hunter ST-1600-HS-B rotor |
| 24 | Isolation butterfly valve with grooved connections included with #9 ST-VBF30-K |
