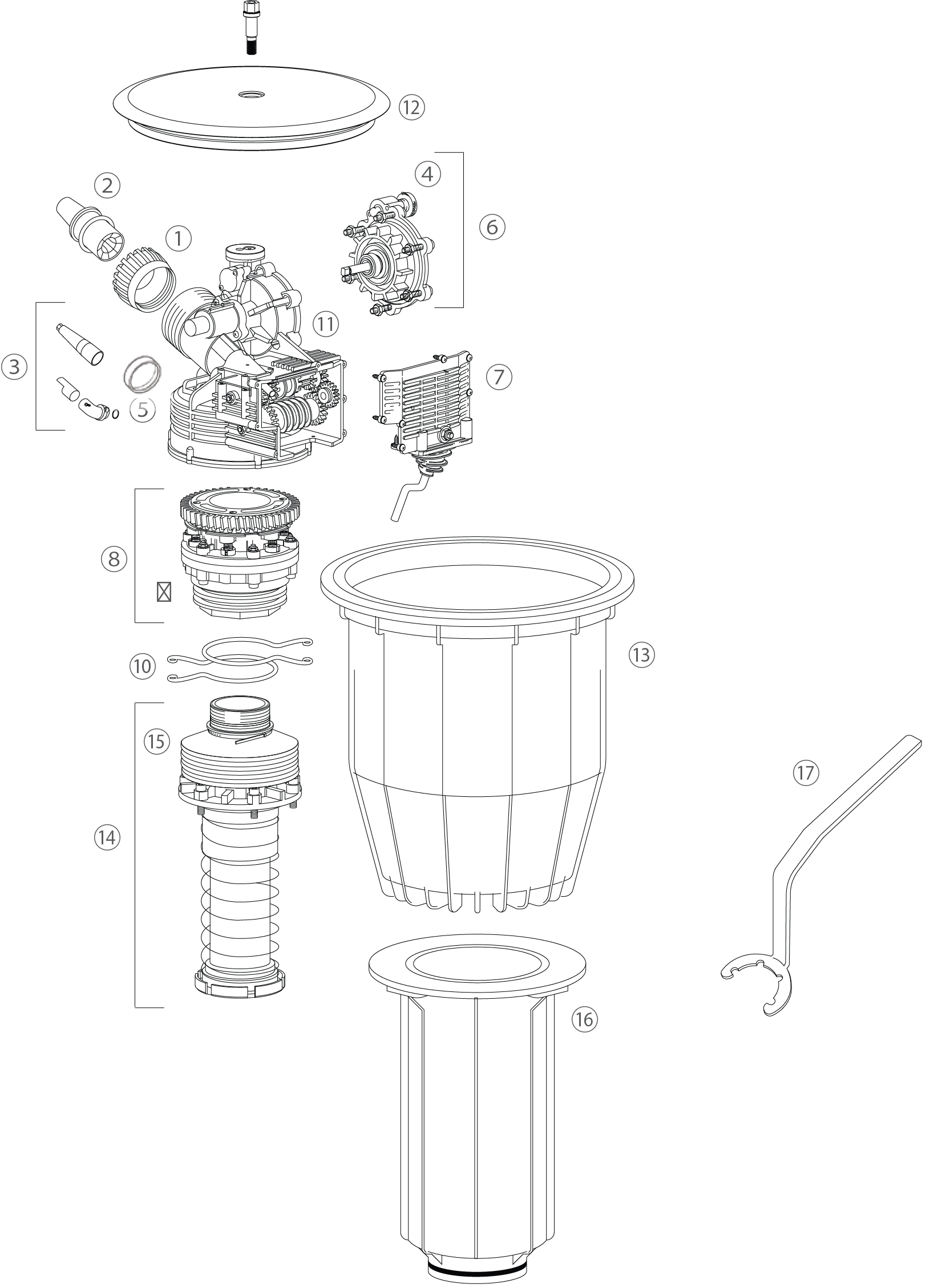

| ITEM | DESCRIPTION | CATALOG NO. | |
|---|---|---|---|
| 1 | Primary Nozzle Retainer | 502402SP | |
| 2 | Primary Nozzle Kit | #16 | 784800SP |
| #18 | 784801SP | ||
| #20 | 784802SP | ||
| #22 | 784803SP | ||
| #24 | 784804SP | ||
| #26 | 784805SP | ||
| 3 | Secondary Nozzle Kit | Female-Threaded Nozzle with Elbow | 10005900SP |
| Male-Threaded Nozzle | 10006100SP | ||
| 4 | Speed Control Knob | 510101SP | |
| 5 | Gearbox Cover | 502455 | |
| 6 | Turbine Assembly Kit | 10006200SP | |
| 7 | Reversing Kit | 510164SP | |
| 8 | Turret Inlet Kit | 510167SP | |
| 9 | Threaded Rotor Inlet | 893600SP | |
| 10 | Arc Rings (2) | 205617SP | |
| 11 | Gear Drive Assembly | 881900SP | |
| 12 | Rotor Cover Kit | 204205SP | |
| Rotor Cover Bolt, Plastic (07/24 or newer) | 10077900SP | ||
| 13 | Upper Body Kit | 502432SP | |
| 14 | Riser Assembly | 502432SP | |
| 15 | Rubber Boot | 502423 | |
| 16 | Lower Body Kit | 502442SP | |
| 17 | Gear-Drive Removal/Installation Tool | 517600SP | |
