Landscape Dripline (LDL)

Bring optimal precision and performance to landscape applications with pressure-compensating Landscape Dripline.
Surface or Subsurface Irrigation Gardens, Turf, Tree Rings, Green Walls, Irregular Spaces
Product Line
Micro Irrigation
  • Pressure-compensating emitters ensure consistent flow and uniform coverage
  • Full-size outlet pool and raised wall inhibit debris and roots from entering the emitter
  • Colour-coded stripes provide easy identification of flow



Note: Available in select markets only. Contact your nearest Hunter representative for more information.

Models

Model Description Add to List
LDL-24-30-400-PC Landscape Dripline, pressure-compensating, 2.4 l/hr, 30 cm spacing, 400 m +
LDL-24-45-400-PC Landscape Dripline, pressure-compensating, 2.4 l/hr, 45 cm spacing, 400 m +
LDL-38-30-400-PC Landscape Dripline, pressure-compensating, 3.8 l/hr, 30 cm spacing, 400 m +
LDL-38-45-400-PC Landscape Dripline, pressure-compensating, 3.8 l/hr, 45 cm spacing, 400 m +
Showing 1 - 4 of 4
Landscape Dripline (LDL)
Landscape Dripline (LDL)
Landscape Dripline (LDL)
User installed options

Contact your local distributor for product availability and ordering.

Specifications

OPERATING SPECIFICATIONS

  • Operating range: 1.0 to 4.2 bar; 100 to 420 kPa
  • Minimum filtration: 120 mesh (125 microns)
  • Warranty period: 5 years



PRODUCT SPECIFICATIONS

  • Available flow rates: 2.4, 3.8 l/hr
  • Available emitter spacing: 30 cm, 45 cm
  • Tubing dimensions: 15.8 mm x 13.8 mm (outside/inside diameter)
  • Wall thickness: 1.0 mm
  • Available lengths: 400 m

 Download Product Spec Sheet

Features

Engineered for efficiency, Hunter Landscape Dripline (LDL) delivers reliable performance from the roots up. As the latest addition to our best-in-class dripline offerings, this pressure-compensating model offers superior operation and performance with heavy-duty 1.0 mm wall thickness and long-term reliability for commercial and residential landscape applications.

Key Benefits

Pressure-compensating emitters ensure consistent flow and uniform coverage
Colour-coded stripe provides easy identification of flow
UV resistance facilitates product longevity
Full-size outlet pool and raised wall inhibit debris and roots from entering the emitter
Check valves keep the line charged up to 2 m and prevent low-point drainage
Proprietary emitter design with multiple inlet filters and a wide, turbulent labyrinth provides superior grit tolerance
Use with barbed 16 mm PLD or PLD-LOC Fittings
Continuous self-flushing emitter

Charts


LDL-PC: 2.4 l/hr
PressureEmitter Spacing (cm)
(bar)(kPa)3045
1.01007196
2.0200104142
3.0300124170
4.0400140190
LDL-PC: 3.8 l/hr
PressureEmitter Spacing (cm)
(bar)(kPa)3045
1.01005272
2.020077106
3.030092126
4.0400103144
Notes
Run lengths based on maintaining consistent flows.

Documents

Select Type

  • All Documents
  • Manuals
  • Marketing
  • Specifications
  • Replacement Parts
Show all documents

Photos

Application Photos

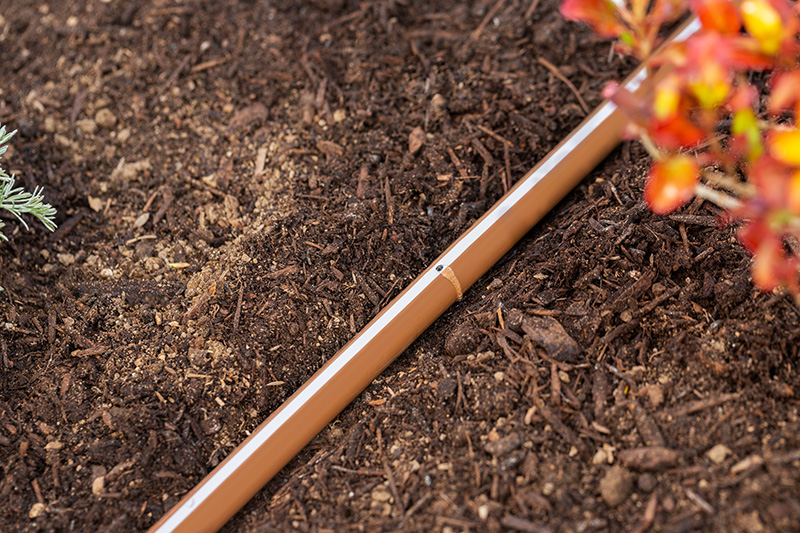

In use shot of LDL white stripe.
In use shot of LDL white stripe.
Title:
LDL (white stripe)
File:
LDL-PC_101_RT
Classification:
Action Shot
Product Line:
Micro Irrigation
Products:
Landscape Dripline (LDL)
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

Studio Photos

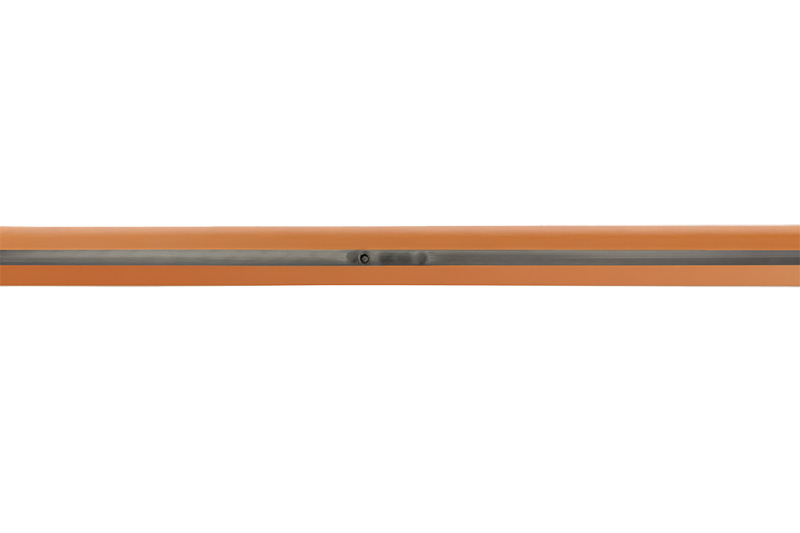

Studio shot of Hunter LDL pc grey stripe.
Studio shot of Hunter LDL pc grey stripe.
Title:
LDL (grey stripe)
File:
LDL-PC_002_RT
Classification:
Studio
Product Line:
Micro Irrigation
Products:
Landscape Dripline (LDL)
Keywords:
Image Page

Download Image

Medium Original
By clicking download, you agree to our terms and conditions.

Photo Usage Disclaimer

Disclaimer: It is illegal to reproduce Hunter photographs or other copyrighted material without the express written permission of the company. When used and/or reproduced, photos must be accompanied by the credit line: "Photo courtesy of Hunter Industries Incorporated." Hunter photos may not be used in association with copy, logos, or other graphic elements that represent other manufacturers' products. If you are using Hunter photos to create any type of print or graphic piece or on a website, you must send a copy of your intended use to creative@hunterindustries.com. Hunter must approve the design prior to final production.

All images must be accompanied by the credit line "Photo courtesy of Hunter Industries Incorporated." The credit line must appear adjacent to the photo.

Close

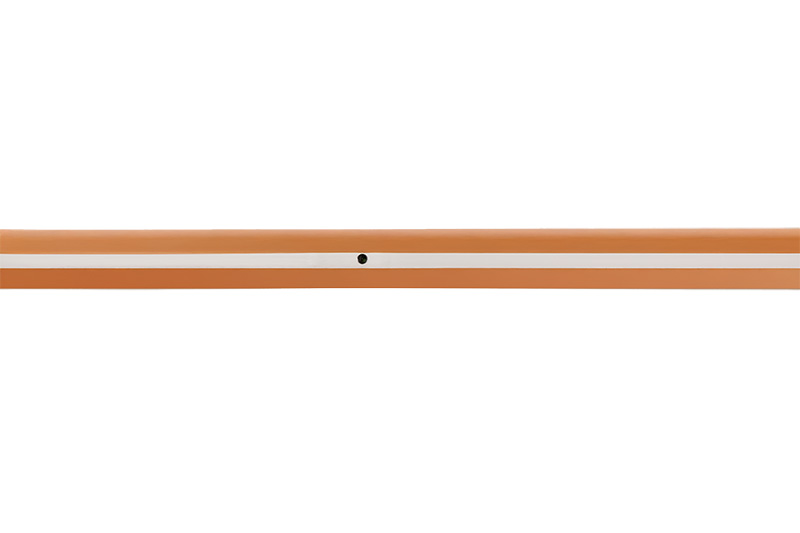

Studio shot of Hunter LDL pc white stripe.
