The radius, flow, and trajectory of the ST-1700 Rotor should be considered when designing and installing irrigation systems.
| Max Height for #20 Preinstalled Nozzle | |||
|---|---|---|---|
| Nozzle | Pressure | Max Height (ft) | Distance at Max Height (ft) |
| #20 Nozzle | 60 | 23 | 64 |
| 70 | 24.5 | 72 | |
| 90 | 26 | 80.5 | |
| 100 | 28 | 83.5 | |
| 115 | 29.5 | 87 | |

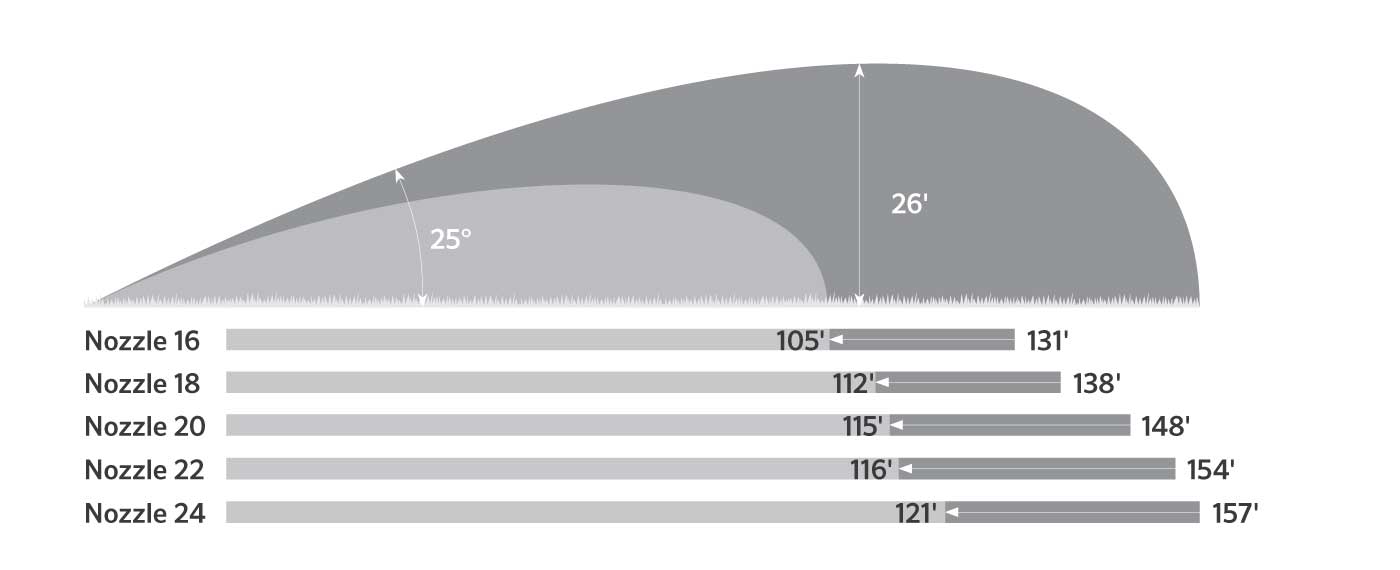

Trajectory Chart
