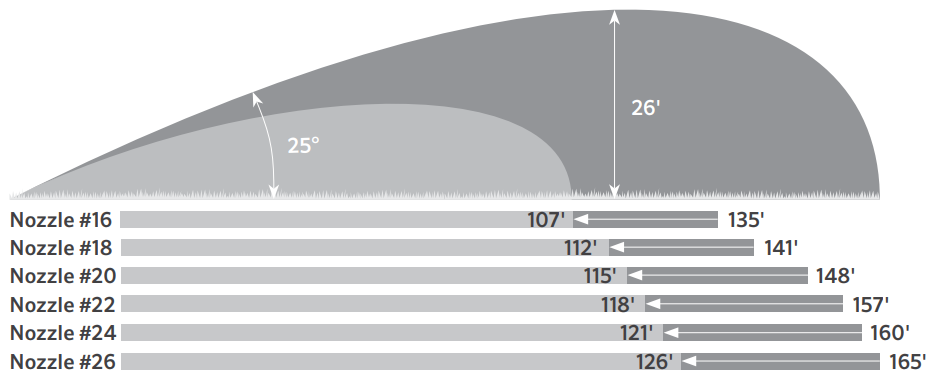

The radius, flow, and trajectory of the ST-1600 Rotor should be considered when designing and installing irrigation systems.
| Max Height for #20 Preinstalled Nozzle | |||
|---|---|---|---|
| ST-1600-HSB | PSI | Max Height (ft) | Distance at Max Height (ft) |
| #20 Nozzle | 60 | 23' | 65.5' |
| 70 | 26' | 77' | |
| 90 | 28' | 85' | |
| 100 | 29.5' | 87' | |
| 115 | 30' | 89' | |
