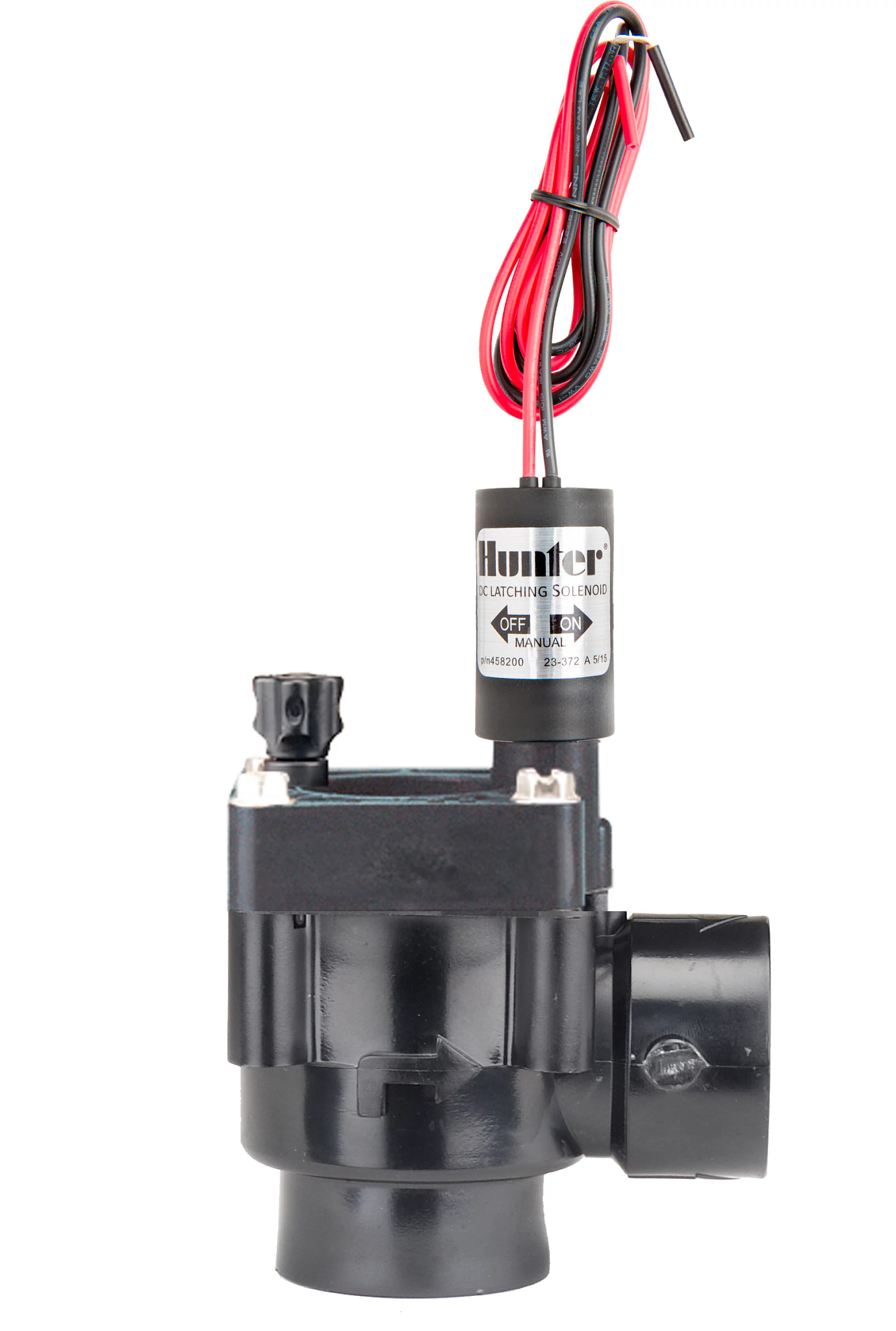

PGV-100-A-DC
Brand:
Landscape Irrigation
Product Line:
Valves
Product Model:
1" PGV
SKU:
PGV100ADC
Description:
PGV Valve, screw-top, 1" angle valve with female thread inlet / outlet and DC-Latching Solenoid; no flow control
Description:
PGV Valve, screw-top, 1" (25 mm) angle valve with female thread inlet / outlet and DC-Latching Solenoid; no flow control
Dimensions
Inlet Size:
1"
Shipping Information
UPC-A:
0611698155998
Qty. / Bag:
20
Ocean Pallet:
0
Land Pallet:
1280
Master Carton:
20
Additional Information
Material:
Plastic
Specification Charts
1" PGV and PGV Jar-Top Pressure Loss in PSI
| 1" PGV and PGV Jar-Top Pressure Loss in PSI | ||||
|---|---|---|---|---|
| Flow GPM | 1" Globe | 1" Angle | 1" Male x Male | 1" Male x Barb |
| 1 | 3 | 1 | 2 | 2 |
| 5 | 4 | 1 | 2 | 2 |
| 10 | 4 | 1 | 2 | 2 |
| 15 | 5 | 1 | 3 | 3 |
| 20 | 5 | 2 | 4 | 4 |
| 25 | 6 | 2 | 7 | 6 |
| 30 | 8 | 3 | 10 | 10 |
| 40 | 14 | 5 | 18 | 16 |
1½" and 2" PGV Pressure Loss in PSI
| 1½" and 2" PGV Pressure Loss in PSI | ||||||
|---|---|---|---|---|---|---|
| Flow GPM | 1½" Globe | 1½" Angle | 2" Globe | 2" Angle | ||
| 20 | 3 | 3 | 1 | 1 | ||
| 30 | 3 | 3 | 1 | 2 | ||
| 35 | 3 | 3 | 2 | 2 | ||
| 40 | 3 | 3 | 2 | 2 | ||
| 50 | 4 | 3.5 | 1 | 1 | ||
| 60 | 5 | 4 | 2 | 2 | ||
| 80 | 5.5 | 4.5 | 3 | 2 | ||
| 100 | 9 | 8 | 5 | 3 | ||
| 120 | 11.5 | 10.5 | 6 | 5 | ||
| 135 | 8 | 7 | ||||
| 150 | 10 | 9 | ||||
