With the HCC Upgrade Kit (HCCUPKIT), you can upgrade your ICC or ICC2 controller to unlock the full capabilities of the Hydrawise software.
1

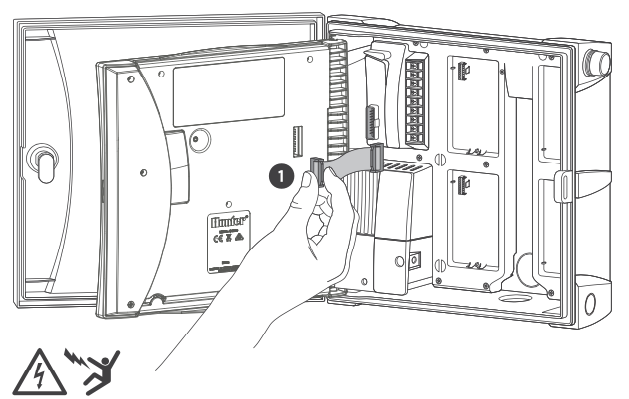

Disconnect the facepack ribbon cable.
2

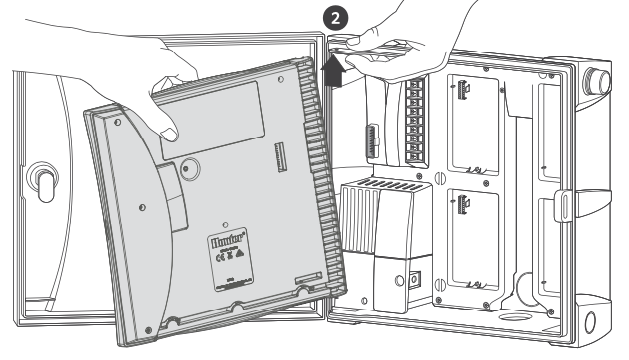

Remove and replace the ICC or ICC2 facepack with the HCC Hydrawise-ready facepack.
3

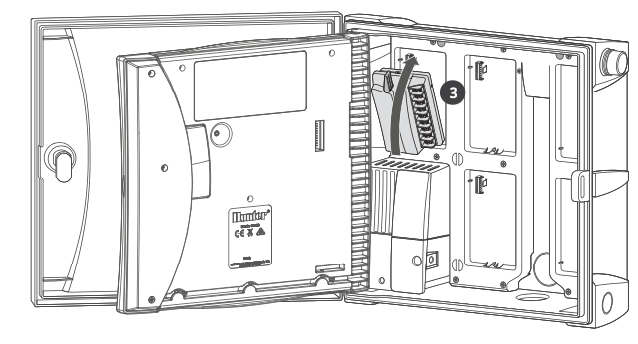

Remove all wiring from the ICC or ICC2 power module. Remove and replace the power module by rotating the locking lever up, then insert the new power module and rotate the locking lever down. Reinstall power module wires.
4
Reconnect ribbon cable to facepack and power module. Turn power back on.
