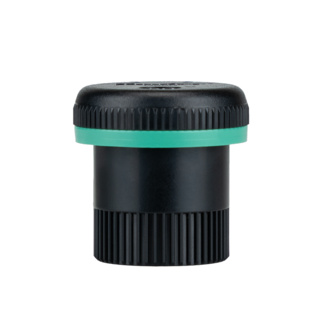

MSBN-50V

Product Line:

Nozzles

Product Model:

Bubblers & Bubbler Nozzles

SKU:

MSBN50V

Description:

Multi-Stream Bubbler Nozzle, pressure-compensating, 0.50 GPM, 50° dual streams, female thread

Description:

Multi-Stream Bubbler Nozzle, pressure-compensating, 1.9 l/min, 50° dual streams, female thread

Shipping Information

UPC-A:

0196055028011

Origin:

MADE IN MEXICO

Arc:

50°

Multi-Stream Bubbler Performance Data

Arc		Model	Flow		Radius
			m³/hr	l/min	m
	•	MSBN-25V *	0.06	0.9	0.46
	•	MSBN-50V *	0.11	1.9	0.76
	•	MSBN-25Q	0.06	0.9	0.3
	•	MSBN-50Q	0.11	1.9	0.5
	•	MSBN-50H	0.11	1.9	0.3
	•	MSBN-10H	0.23	3.8	0.5
	•	MSBN-10F	0.23	3.8	0.3
	•	MSBN-20F	0.45	7.6	0.5
Note: Typical spacing 0.6 to 1.2 m. Flows shown for pressures between 1.0 and 4.8 bar; 100 and 480 kPa. * For a 15 cm pop-up, the radius is 0.6 at 0.9 l/min and 0.9 at 1.9 l/min.

PCN / PCB Performance Data

	Model	Flow		Pattern
		m³/hr	l/min	Type
	25	0.06	0.9	Trickle
	50	0.11	1.9	Trickle
	10	0.23	3.8	Umbrella
	20	0.45	7.6	Umbrella
Note: Typical spacing 0.3 to 0.9 m. Flows shown for pressures between 1.0 and 4.8 bar; 100 and 480 kPa.



Pressure		Radius	Flow
bar	kPa	m	m³/hr	l/min
1.0	100	1.5	0.07	1.1
1.5	150	1.5	0.07	1.2
2.0	200	1.5	0.09	1.4
2.1	210	1.5	0.09	1.5
2.5	250	1.5	0.10	1.6
