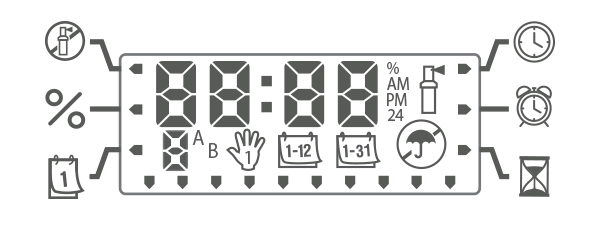

Main Display
 |
Current Time/Day – Set current day and time. |
 |
Start Times – Set 1 to 4 start times for each program. |
 |
Run Times – Set each valve station run time from 1 min. to 4 hrs. |
 |
Water Days – Select specific days to water, odd/even days, or a selected number of days between waterings (interval). |
 |
Seasonal Adjustment – Make run time changes according to the seasons without reprogramming the controller. |
 |
System Off – Stops all automatic watering. |
 |
Program Designator – identifies program in use (A or B). Flashing Sprinkler – indicates that watering is occurring. |
 |
Umbrella – indicates rain sensor is suspending irrigation. |
 |
Crossed Umbrella – Indicates rain sensor has been manually bypassed. |
 |
– identifies month when programming current date. |
 |
– identifies month when programming current date. |
 |
Manual Single Station – indicates the one time watering of a single valve station. |
 |
Manual All Station – indicates the one time watering of all valve stations or selected stations. |
Control Buttons
 |
Button – increases displayed item. |
 |
Button – decreases the displayed item. |
 |
Button – advances to the next item. |
 |
Button – advances to the previous item. |
 |
Button – Select program A or B for different watering requirements. |
 |
Mode Button – Advanced through programming functions. |
