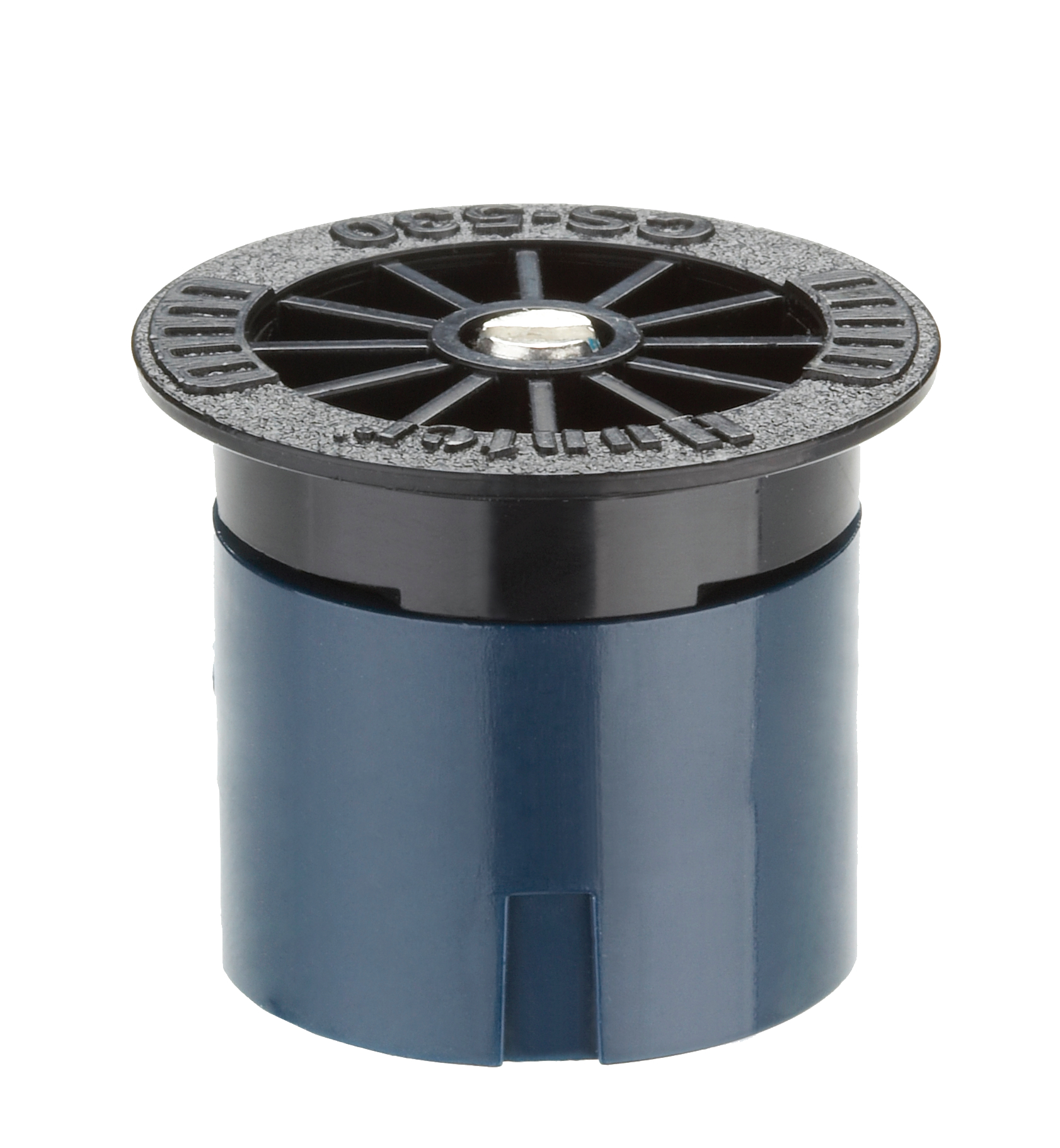

CS-530

Brand:

Landscape Irrigation

Product Line:

Nozzles

Product Model:

Strip Pattern Nozzles

SKU:

CS530

Description:

Strip Pattern Nozzle, 5' x 30' center strip

Description:

Strip Pattern Nozzle, 1.5 m x 9 m center strip

Shipping Information

UPC-A:

0611698152768

Qty. / Bag:

25/250

Ocean Pallet:

52000

Land Pallet:

40000

Master Carton:

250

Precipitation Rate:

Approx 40 mm/hr

Strip Pattern Nozzles Performance Data

Arc	Pressure		Width x Length	Flow
• Nozzle Blue	bar	kPa	m	m³/hr	l/min
LCS-515 Left Corner Strip	1.0	100	1.2 x 4.2	0.10	1.7
	1.5	150	1.2 x 4.3	0.13	2.1
	2.0	200	1.5 x 4.5	0.15	2.4
	2.1	210	1.5 x 4.5	0.15	2.5
	2.5	250	1.5 x 4.5	0.16	2.7
RCS-515 Right Corner Strip	1.0	100	1.2 x 4.2	0.10	1.7
	1.5	150	1.2 x 4.3	0.13	2.1
	2.0	200	1.5 x 4.5	0.15	2.4
	2.1	210	1.5 x 4.5	0.15	2.5
	2.5	250	1.5 x 4.5	0.16	2.7
SS-530 Side Strip	1.0	100	1.2 x 8.5	0.21	3.5
	1.5	150	1.5 x 9.0	0.25	4.2
	2.0	200	1.5 x 9.0	0.29	4.9
	2.1	210	1.5 x 9.0	0.30	5.0
	2.5	250	1.5 x 9.0	0.33	5.5
ES-515 End Strip	1.0	100	1.1 x 4.2	0.10	1.7
	1.5	150	1.2 x 4.3	0.13	2.1
	2.0	200	1.5 x 4.5	0.15	2.4
	2.1	210	1.5 x 4.5	0.15	2.5
	2.5	250	1.5 x 4.5	0.16	2.7
CS-530 Center Strip	1.0	100	1.2 x 8.5	0.21	3.5
	1.5	150	1.5 x 9.0	0.25	4.2
	2.0	200	1.5 x 9.0	0.29	4.9
	2.1	210	1.5 x 9.0	0.30	5.0
	2.5	250	1.5 x 9.0	0.33	5.5
SS-918 Side Strip	1.0	100	2.4 x 5.2	0.27	4.5
	1.5	150	2.7 x 5.5	0.33	5.5
	2.0	200	2.7 x 5.5	0.38	6.4
	2.1	210	2.7 x 5.5	0.39	6.5
	2.5	250	2.7 x 5.5	0.43	7.1
Bold = Recommended pressure
