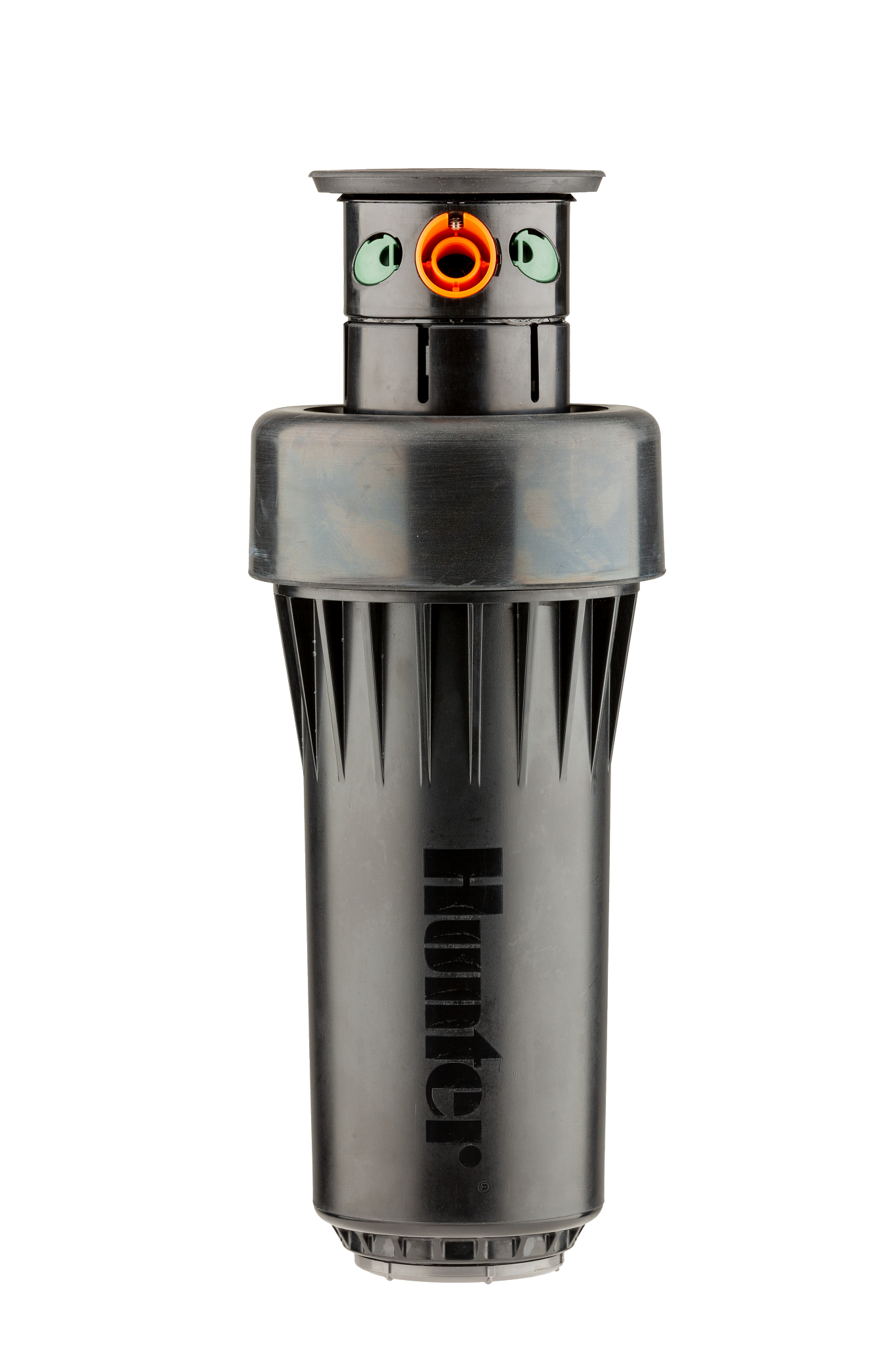

ST-90-B-83
Brand:
Landscape Irrigation
Product Line:
ST System
Product Model:
ST-90
SKU:
ST90B83
Description:
Synthetic turf rotor, 8 cm pop-up, jar-top cap, adjustable from 40° to 360°, 1½" (40 mm) BSP inlet, nozzle 83 installed
Dimensions
Pop-up Height:
7.5 cm
Inlet Size:
1½"
Shipping Information
UPC-A:
0611698029183
Ocean Pallet:
288
Land Pallet:
288
Master Carton:
6
Specification Charts
ST-90 / STG-900 Nozzle Performance Data
| STG-900 Nozzle Performance Data | |||||||
|---|---|---|---|---|---|---|---|
| Nozzle | Pressure | Radius | Flow | Precip mm/hr | |||
| bar | kPa | m | m³/hr | l/min |  |
 |
|
| 73 •
Orange
|
7.0 | 700 | 31.4 | 16.9 | 282 | 34.3 | 39.6 |
| 7.5 | 750 | 33.2 | 17.5 | 291 | 31.7 | 36.6 | |
| 8.0 | 800 | 35.1 | 18.1 | 301 | 29.4 | 34.0 | |
| 83 •
Tan
|
7.0 | 700 | 34.1 | 19.1 | 319 | 32.8 | 37.9 |
| 7.5 | 750 | 35.4 | 20.0 | 333 | 32.0 | 37.0 | |
| 8.0 | 800 | 36.6 | 20.9 | 348 | 31.2 | 36.1 | |
|
Note: All precipitation rates calculated for 180° operation. For precipitation rate of a 360° sprinkler, divide by 2. Requires minimum 7.0 bar; 700 kPa dynamic pressure supplied to swing joint inlet. |
|||||||
