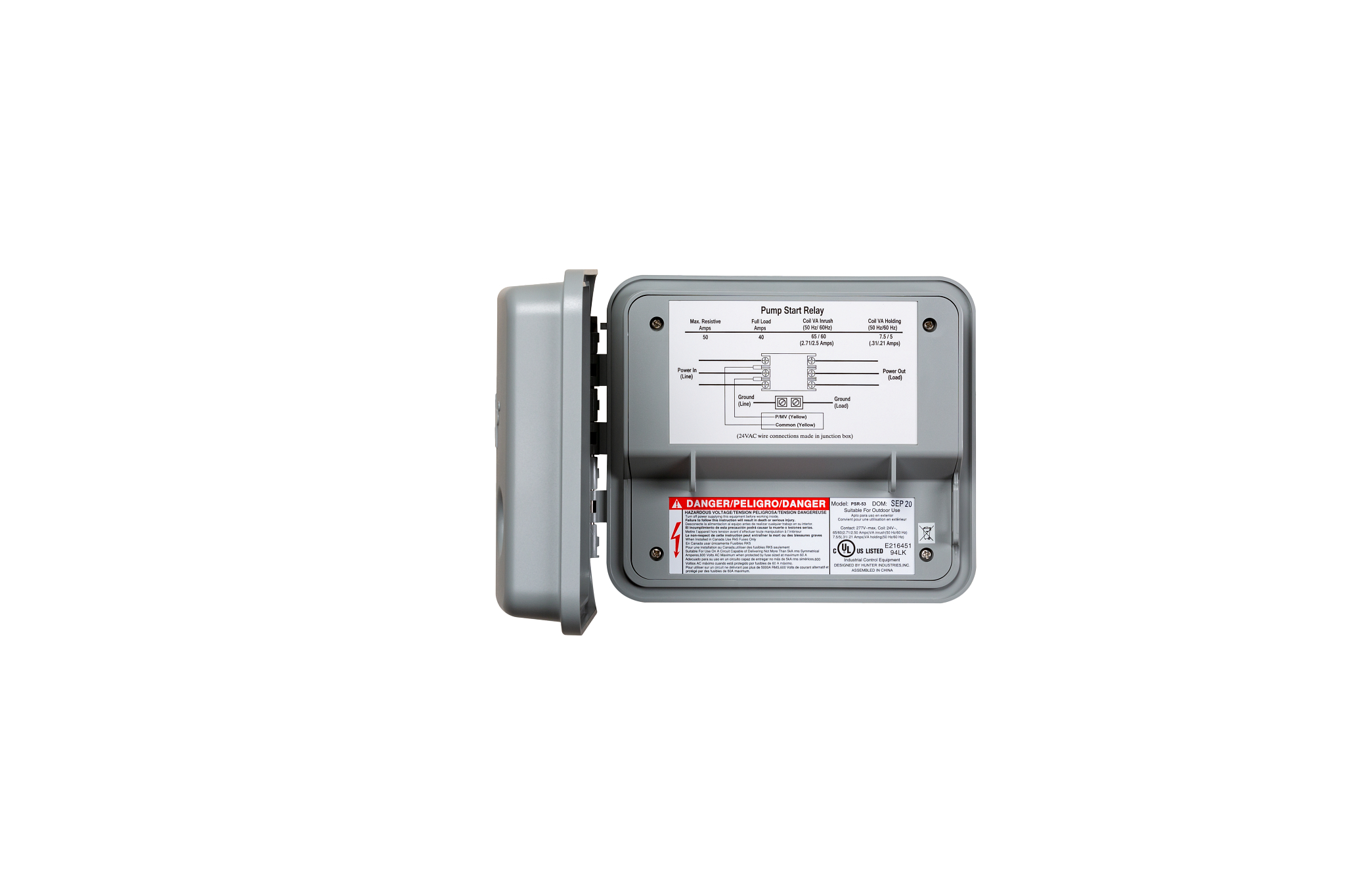

PSR-53
More information about Pump Start Relay
Brand:
Landscape Irrigation
Product Line:
Controllers
Product Model:
Pump Start Relay
SKU:
PSR53
Description:
Pump Start Relay, triple-pole/single-throw pump start relay for 120 VAC pumps up to 3 hp, 230 VAC pumps up to 7.5 hp, or 230 VAC pumps up to 10 hp (three-phase)
Description:
Pump Start Relay, triple-pole/single-throw pump start relay for 120 VAC pumps up to 3 hp, 230 VAC pumps up to 7.5 hp, or 230 VAC pumps up to 10 hp (three-phase)
Shipping Information
UPC-A:
0611698100059
Qty. / Bag:
10
Ocean Pallet:
320
Land Pallet:
240
Master Carton:
10
Additional Information
Approvals:
IPX4
Controller Power:
AC
Approvals:
Specification Charts
Pump Start Relay Electrical Specifications
| Pump Start Relay Electrical Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Models | Single Phase | 3 Phase** | Max. Full Load Amps |
Max. Resistive Amps |
Coil VA | Coil VA | |||
| kW at 120 VAC |
kW at 230 VAC |
kW at 230 VAC |
Inrush | (Amps) | Holding | (Amps) | |||
| PSR-22 | 1.5* | 2.2* | N/A | 30 | 40 | 33 | (1.38) | 8 | (0.33) |
| PSR-52 | 2.2 | 5.6 | N/A | 40 | 50 | 65 | (2.71) | 7.5 | (0.31) |
| PSR-53 | 2.2 | 5.6 | 7.5 | 40 | 50 | 65 | (2.71) | 7.5 | (0.31) |
|
|
|||||||||
