15H

More information about Pro Fixed Nozzles

Brand:

Landscape Irrigation

Product Line:

Nozzles

Product Model:

Pro Fixed Nozzles

SKU:

15T

Description:

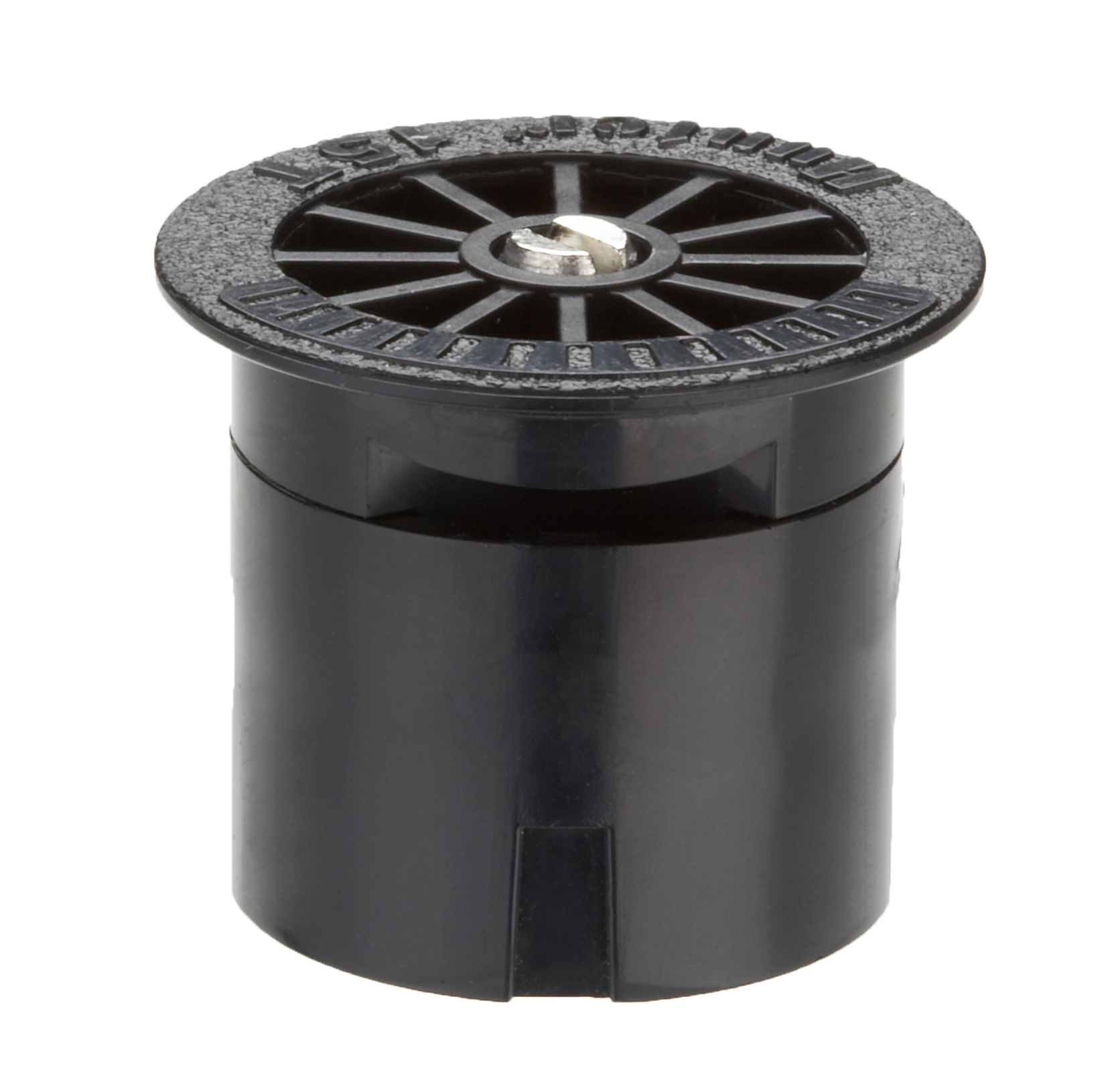

Pro Fixed Nozzle, 15' radius, 180°, fixed arc, female thread

Description:

Pro Fixed Nozzle, 4.6 m radius, 180°, fixed arc, female thread

Download Spec Sheet

Add To List

Shipping Information

UPC-A:

0611698154724

Qty. / Bag:

25/250

Ocean Pallet:

52000

Land Pallet:

40000

Master Carton:

250

Additional Information

Arc:

120º

Precipitation Rate:

Approx 40 mm/hr

Radius:

4.6 m

Specification Charts

Pro-Spray Fixed Arc Nozzles Performance Data

PRO-SPRAY FIXED ARC NOZZLES PERFORMANCE DATA

Nozzle 5 Blue •

Radius: 1.5 m
Fixed ¼, ½, Full
Trajectory 0°

Arc	Position	Pressure		Radius	Flow		Precip mm/hr
		bar	kPa	m	m³/hr	l/min
90°	Q	1.0	100	1.1	0.02	0.30	60	69
		1.5	150	1.3	0.02	0.38	54	62
		2.0	200	1.5	0.03	0.45	48	55
		2.1	210	1.5	0.03	0.46	49	57
		2.5	250	1.7	0.03	0.51	42	49
120°	T	1.0	100
		1.5	150
		2.0	200	Use Hunter 4A Nozzle
		2.1	210
		2.5	250
180°	H	1.0	100	1.1	0.40	0.60	60	69
		1.5	150	1.3	0.05	0.76	54	62
		2.0	200	1.5	0.05	0.90	48	53
		2.1	210	1.5	0.06	0.92	49	57
		2.5	250	1.7	0.06	1.02	42	49
360°	F	1.0	100	1.1	0.07	1.2	60	69
		1.5	150	1.3	0.09	1.52	54	62
		2.0	200	1.5	0.11	1.79	48	55
		2.1	210	1.5	0.11	1.85	49	57
		2.5	250	1.7	0.12	2.04	42	49

Nozzle 8 Brown •

Radius: 2.4 m
Fixed ¼, ⅓, ½, Full
Trajectory 15°

Arc	Position	Pressure		Radius	Flow		Precip mm/hr
		bar	kPa	m	m³/hr	l/min
90°	Q	1.0	100	1.7	0.04	0.62	51	59
		1.5	150	2.1	0.05	0.84	46	53
		2.0	200	2.4	0.06	1.00	42	48
		2.1	210	2.4	0.06	1.03	43	49
		2.5	250	2.7	0.07	1.13	37	43
120°	T	1.0	100	1.7	0.05	0.83	51	59
		1.5	150	2.1	0.07	1.12	46	53
		2.0	200	2.4	0.08	1.33	42	48
		2.1	210	2.4	0.08	1.37	43	49
		2.5	250	2.7	0.09	1.51	37	33
180°	H	1.0	100	1.7	0.08	1.33	55	64
		1.5	150	2.1	0.10	1.69	46	53
		2.0	200	2.4	0.12	1.99	42	48
		2.1	210	2.4	0.12	2.05	43	49
		2.5	250	2.7	0.14	2.27	37	43
360°	F	1.0	100	1.7	0.16	2.67	55	64
		1.5	150	2.1	0.20	3.37	46	53
		2.0	200	2.4	0.24	3.99	42	48
		2.1	210	2.4	0.25	4.10	43	49
		2.5	250	2.7	0.27	4.54	37	43

Nozzle 10 Red •

Radius: 3.0 m
Fixed ¼, ⅓, ½, Full
Trajectory 15°

Arc	Position	Pressure		Radius	Flow		Precip mm/hr
		bar	kPa	m	m³/hr	l/min
90°	Q	1.0	100	2.4	0.07	1.08	45	52
		1.5	150	2.7	0.08	1.33	44	50
		2.0	200	3.0	0.09	1.53	41	47
		2.1	210	3.0	0.09	1.57	42	48
		2.5	250	3.3	0.10	1.71	38	44
120°	T	1.0	100	2.4	0.09	1.44	45	52
		1.5	150	2.7	0.11	1.77	44	50
		2.0	200	3.0	0.12	2.04	41	47
		2.1	210	3.0	0.13	2.09	42	48
		2.5	250	3.3	0.21	3.43	38	44
180°	H	1.0	100	2.4	0.13	2.17	45	52
		1.5	150	2.7	0.16	2.65	44	50
		2.0	200	3.0	0.18	3.06	41	47
		2.1	210	3.0	0.19	3.14	42	48
		2.5	250	3.3	0.21	3.43	38	44
360°	F	1.0	100	2.4	0.26	4.33	45	52
		1.5	150	2.7	0.32	5.31	44	50
		2.0	200	3.0	0.37	6.13	41	47
		2.1	210	3.0	0.38	6.28	42	48
		2.5	250	3.3	0.41	6.85	38	44

Nozzle 12 Green •

Radius: 3.7 m
Fixed ¼, ⅓, ½, ⅔, ¾, Full
Trajectory 28°

Arc	Position	Pressure		Radius	Flow		Precip mm/hr
		bar	kPa	m	m³/hr	l/min
90°	Q	1.0	100	3.0	0.10	1.58	42	49
		1.5	150	3.4	0.12	2.00	42	48
		2.0	200	3.7	0.14	2.37	41	48
		2.1	210	3.7	0.15	2.43	43	49
		2.5	250	4.0	0.16	2.69	40	47
120°	T	1.0	100	3.0	0.13	2.11	42	49
		1.5	150	3.4	0.16	2.67	42	48
		2.0	200	3.7	0.19	3.16	41	48
		2.1	210	3.7	0.19	3.25	43	49
		2.5	250	4.0	0.22	3.59	40	47
180°	H	1.0	100	3.0	0.19	3.17	42	49
		1.5	150	3.4	0.24	4.01	42	48
		2.0	200	3.7	0.28	4.73	41	48
		2.1	210	3.7	0.29	4.87	43	49
		2.5	250	4.0	0.32	5.39	40	47
360°	F	1.0	100	3.0	0.38	6.33	42	49
		1.5	150	3.4	0.48	8.01	42	48
		2.0	200	3.7	0.57	9.47	41	48
		2.1	210	3.7	0.58	9.74	43	49
		2.5	250	4.0	0.65	10.78	40	47

Nozzle 15 Black •

Radius: 4.6 m
Fixed ¼, ⅓, ½, ⅔, ¾, Full
Trajectory 28°

Arc	Position	Pressure		Radius	Flow		Precip mm/hr
		bar	kPa	m	m³/hr	l/min
90°	Q	1.0	100	3.9	0.15	2.50	39	46
		1.5	150	4.2	0.18	3.06	42	48
		2.0	200	4.6	0.21	3.54	40	46
		2.1	210	4.6	0.22	3.62	41	47
		2.5	250	4.9	0.24	3.95	40	46
120°	T	1.0	100	3.9	0.20	3.33	39	46
		1.5	150	4.2	0.24	4.08	42	48
		2.0	200	4.6	0.28	4.71	40	46
		2.1	210	4.6	0.29	4.83	41	47
		2.5	250	4.9	0.32	5.27	40	46
180°	H	1.0	100	3.9	0.30	5.00	39	46
		1.5	150	4.2	0.37	6.12	42	48
		2.0	200	4.6	0.42	7.07	40	46
		2.1	210	4.6	0.43	7.25	41	47
		2.5	250	4.9	0.47	7.91	40	46
360°	F	1.0	100	3.9	0.60	10.00	39	46
		1.5	150	4.2	0.73	12.25	42	48
		2.0	200	4.6	0.85	14.14	40	46
		2.1	210	4.6	0.87	14.49	41	47
		2.5	250	4.9	0.95	15.81	40	46

Nozzle 17 Grey •

Radius: 5.2 m
Fixed ¼, ½
Trajectory 28°

Arc	Position	Pressure		Radius	Flow		Precip mm/hr
		bar	kPa	m	m³/hr	l/min
90°	Q	1.0	100	4.7	0.19	3.17	34	40
		1.5	150	4.9	0.23	3.88	39	45
		2.0	200	5.2	0.27	4.48	40	46
		2.1	210	5.2	0.28	4.59	41	47
		2.5	250	5.5	0.30	5.01	40	46
120°	T	1.0	100
		1.5	150
		2.0	200	Use Hunter 17A Nozzle
		2.1	210
		2.5	250
180°	H	1.0	100	4.7	0.38	6.33	34	40
		1.5	150	4.9	0.47	7.76	39	45
		2.0	200	5.2	0.54	8.96	40	46
		2.1	210	5.2	0.55	9.18	41	47
		2.5	250	5.5	0.60	10.01	40	46
360°	F	1.0	100
		1.5	150
		2.0	200	Use Hunter 17A Nozzle
		2.1	210
		2.5	250

Bold = Recommended pressure
