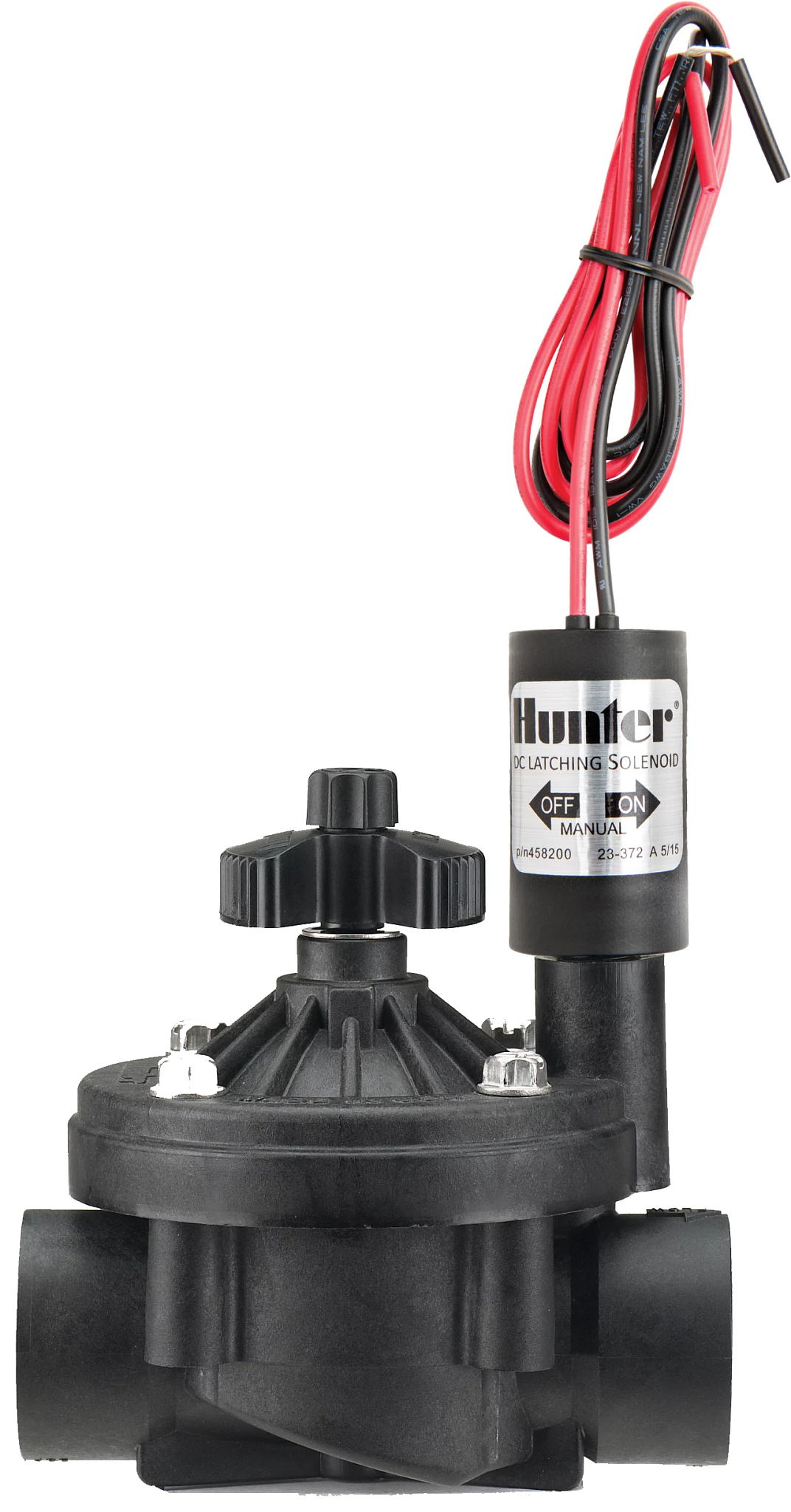

ICV-101G-FS-DC
Brand:
Landscape Irrigation
Product Line:
Valves
Product Model:
ICV
SKU:
ICV101GFSDC
Description:
ICV Valve, 1" glass-filled nylon globe valve with flow control, factory-installed Filter Sentry Mechanism, and DC-Latching Solenoid
Description:
ICV Valve, 1" (25 mm) glass-filled nylon globe valve with flow control, factory-installed Filter Sentry Mechanism, and DC-Latching Solenoid
Dimensions
Inlet Size:
1"
Shipping Information
UPC-A:
0611698160244
Qty. / Bag:
12
Origin:
Made in Mexico
Ocean Pallet:
936
Land Pallet:
720
Master Carton:
12
Additional Information
Material:
Plastic
Specification Charts
ICV Pressure Loss Charts (bar/kPa)
| ICV Pressure Loss in Bar | |||||
|---|---|---|---|---|---|
| Flow | 1" | 1½" | 2" | 3" | |
| m³/hr | Globe | Globe | Globe | Globe | Angle |
| 0.05 | 0.1 | ||||
| 0.1 | 0.1 | ||||
| 0.3 | 0.1 | ||||
| 1.0 | 0.2 | ||||
| 2.5 | 0.2 | ||||
| 3.5 | 0.2 | ||||
| 4.5 | 0.2 | 0.1 | |||
| 7.0 | 0.4 | 0.1 | |||
| 9.0 | 1.0 | 0.1 | 0.1 | ||
| 11.0 | 0.2 | 0.1 | |||
| 13.5 | 0.2 | 0.1 | |||
| 17.0 | 0.3 | 0.1 | |||
| 20.5 | 0.4 | 0.2 | |||
| 23.0 | 0.5 | 0.3 | |||
| 27.0 | 0.7 | 0.4 | |||
| 30.5 | 0.9 | 0.5 | |||
| 34.0 | 1.2 | 0.6 | 0.2 | 0.1 | |
| 40.0 | 0.9 | 0.2 | 0.2 | ||
| 45.5 | 1.2 | 0.3 | 0.2 | ||
| 51.0 | 0.3 | 0.3 | |||
| 57.0 | 0.4 | 0.4 | |||
| 62.5 | 0.5 | 0.5 | |||
| 68.0 | 0.6 | 0.6 | |||
| ICV Pressure Loss in KPA | |||||
|---|---|---|---|---|---|
| Flow | 1" | 1½" | 2" | 3" | |
| l/min | Globe | Globe | Globe | Globe | Angle |
| 1 | 14 | ||||
| 2 | 14 | ||||
| 4 | 14 | ||||
| 20 | 17 | ||||
| 40 | 20 | ||||
| 60 | 20 | ||||
| 75 | 20 | 9.6 | |||
| 115 | 62 | 10 | |||
| 150 | 139 | 12 | 5 | ||
| 190 | 15 | 7 | |||
| 225 | 18 | 9.3 | |||
| 280 | 26 | 14 | |||
| 340 | 37 | 20 | |||
| 380 | 46 | 26 | |||
| 450 | 65 | 36 | |||
| 510 | 84 | 47 | |||
| 565 | 104 | 57 | 16 | 12 | |
| 660 | 79 | 22 | 17 | ||
| 750 | 103 | 29 | 23 | ||
| 850 | 38 | 30 | |||
| 950 | 47 | 38 | |||
| 1050 | 58 | 47 | |||
| 1135 | 69 | 56 | |||
