IBV-301G-FS
Brand:
Landscape Irrigation
Product Line:
Valves
Product Model:
IBV
SKU:
IBV301GFS
Description:

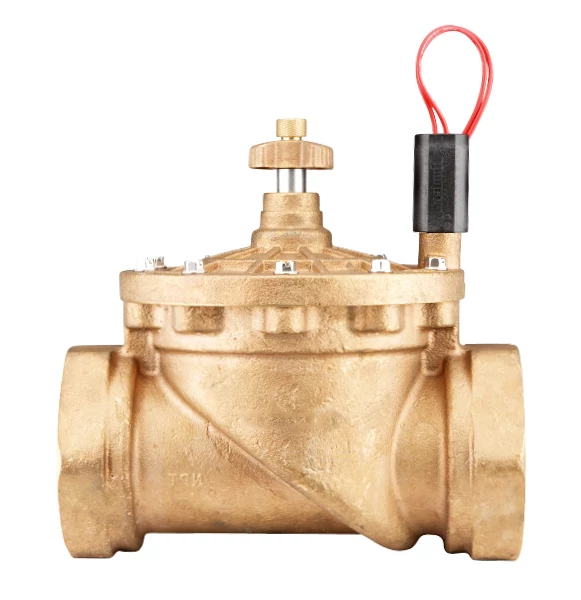

IBV Valve, 3" brass globe valve with flow control and factory-installed Filter Sentry Mechanism
Description:
IBV Valve, 80 mm brass globe valve with flow control and factory-installed Filter Sentry Mechanism
Dimensions
Inlet Size:
3"
Shipping Information
UPC-A:
0611698152454
Qty. / Bag:
1
Ocean Pallet:
100
Land Pallet:
100
Master Carton:
1
Additional Information
Material:
Brass
Specification Charts
IBV Pressure Loss Charts (bar/kPa)
| IBV Pressure Loss in Bar | ||||
|---|---|---|---|---|
| Flow | 1" | 1½" | 2" | 3" |
| m³/hr | Globe | Globe | Globe | Globe |
| 0.05 | 0.1 | |||
| 0.1 | 0.1 | |||
| 0.3 | 0.1 | |||
| 1.0 | 0.2 | |||
| 2.5 | 0.2 | |||
| 3.5 | 0.2 | |||
| 4.5 | 0.2 | 0.1 | ||
| 7.0 | 0.4 | 0.1 | ||
| 9.0 | 1.0 | 0.1 | 0.1 | |
| 11.0 | 0.2 | 0.1 | ||
| 13.5 | 0.2 | 0.1 | ||
| 17.0 | 0.3 | 0.1 | ||
| 20.5 | 0.4 | 0.2 | ||
| 23.0 | 0.5 | 0.3 | ||
| 27.0 | 0.7 | 0.4 | ||
| 30.5 | 0.9 | 0.5 | ||
| 34.0 | 1.2 | 0.6 | 0.2 | |
| 40.0 | 0.9 | 0.2 | ||
| 45.5 | 1.2 | 0.3 | ||
| 51.0 | 0.3 | |||
| 57.0 | 0.4 | |||
| 62.5 | 0.5 | |||
| 68.0 | 0.6 | |||
| IBV Pressure Loss in KPA | ||||
|---|---|---|---|---|
| Flow | 1" | 1½" | 2" | 3" |
| l/min | Globe | Globe | Globe | Globe |
| 1 | 14 | |||
| 2 | 14 | |||
| 4 | 14 | |||
| 20 | 17 | |||
| 40 | 20 | |||
| 60 | 20 | |||
| 75 | 20 | 9.6 | ||
| 115 | 62 | 10 | ||
| 150 | 139 | 12 | 5 | |
| 190 | 15 | 7 | ||
| 225 | 18 | 9.3 | ||
| 280 | 26 | 14 | ||
| 340 | 37 | 20 | ||
| 380 | 46 | 26 | ||
| 450 | 65 | 36 | ||
| 510 | 84 | 47 | ||
| 565 | 104 | 57 | 16 | |
| 660 | 79 | 22 | ||
| 750 | 103 | 29 | ||
| 850 | 38 | |||
| 950 | 47 | |||
| 1050 | 58 | |||
| 1135 | 69 | |||
