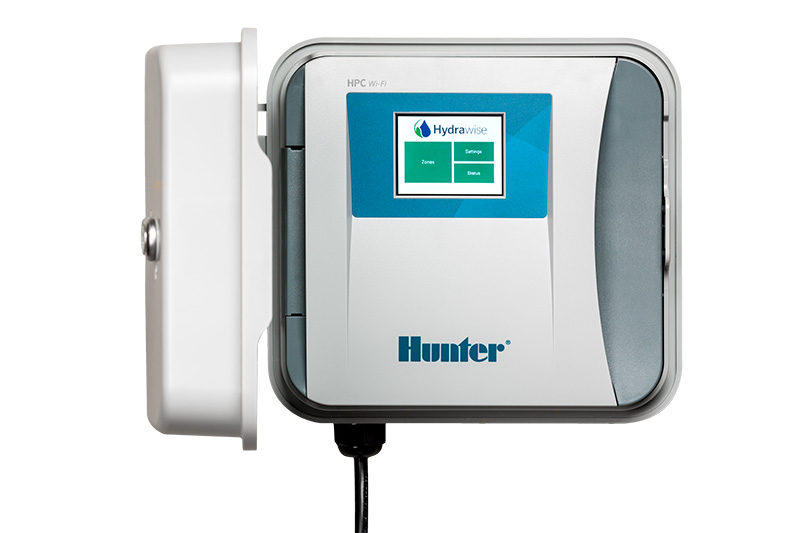

HPC-400 controller.

HPC-401E

More information about HPC

Product Line:
Controllers
Hydrawise
Product Model:
HPC
SKU:
HPC401E
Description:
HPC Controller, Hydrawise-enabled with Wi-Fi connection, 4-station base model, plastic wall mount cabinet, 230 VAC with European connection and plug
Description:
HPC Controller, Hydrawise-enabled with Wi-Fi connection, 4-station base model, plastic wall mount cabinet, 230 VAC with European connection and plug
HPC-401E
HPC-401E
HPC-401E
User installed options

Dimensions

Width:
254
Length:
270
Depth:
114.30
Height:
228.60

Operating Specifications

Transformer input: 120 or 230 VAC

Transformer output (24 VAC): 1 A

Controller maximum current draw: 0.8 A

Station output (24 VAC): 0.56 A

P/MV output (24 VAC): 0.28 A

2.4 GHz (only) Wi-Fi router compatible, 802.11 b/g/n 20 MHz

Supported security protocols: WPA/WPA2 Personal (only), TLS

Approvals: IP44 (outdoor), UL, cUL, FCC, CE, UKCA, RCM, ISED

Shipping Information

Origin:
China
Ocean Pallet:
256
Land Pallet:
192
Master Carton:
8

Additional Information

Approvals:
EPA Watersense
Smart Drop Certified
Approvals:
