PGV-101-G-B
Brand:
Landscape Irrigation
Product Line:
Valves
Product Model:
1" PGV
SKU:
PGV101GB
Description:

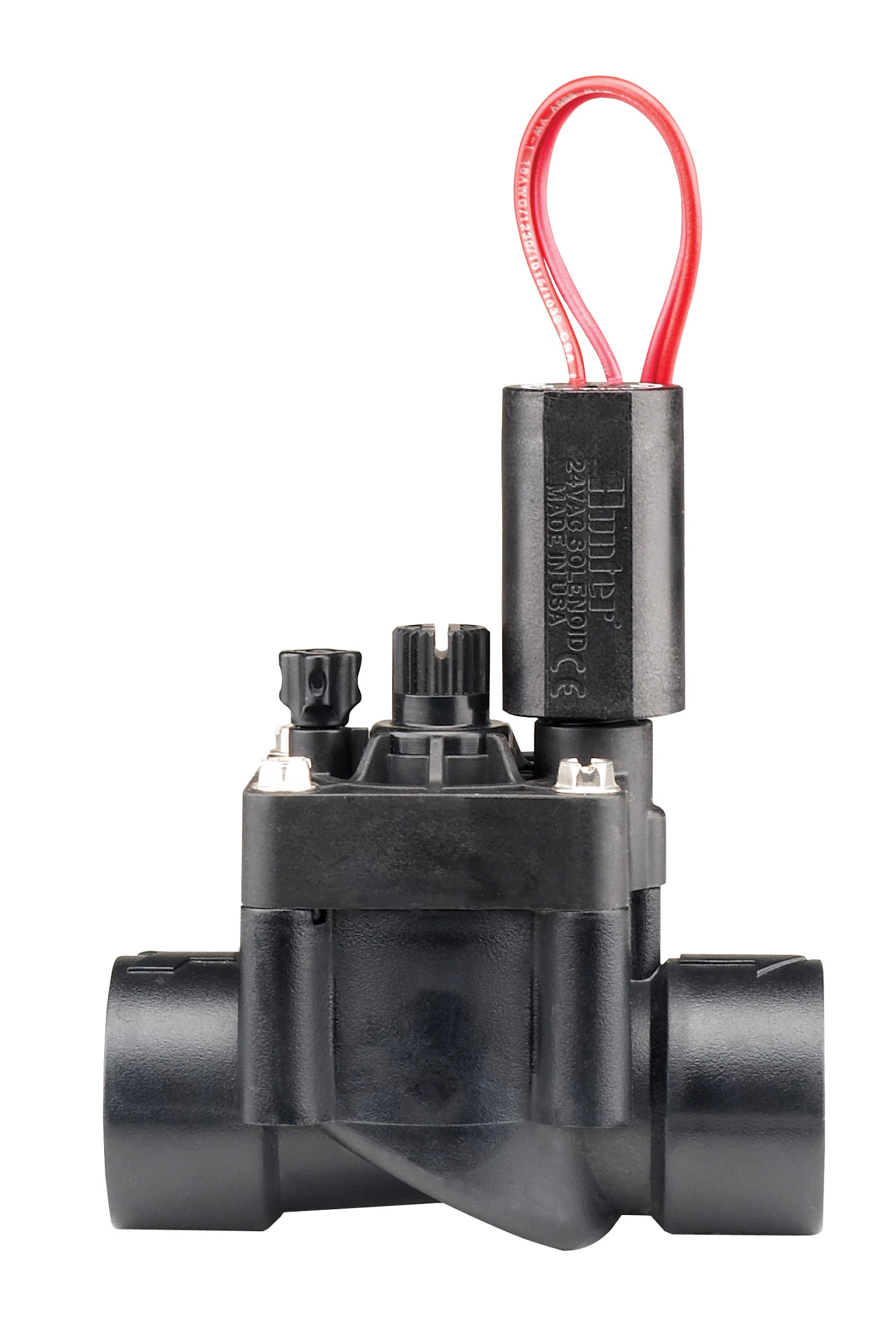

PGV Valve, screw-top, 1" (25 mm) valve with flow control and female BSP inlet / outlet
Dimensions
Inlet Size:
1"
Shipping Information
UPC-A:
0611698111635
Ocean Pallet:
1320
Land Pallet:
960
Master Carton:
20
Specification Charts
1" (25 mm) PGV and PGV Jar-Top Pressure Loss (bar/kPa)
| 1" (25 mm) PGV Valve | |
|---|---|
| Flow m3/hr | Pressure Loss bar |
| 0.3 | 0.08 |
| 1.0 | 0.11 |
| 2.5 | 0.13 |
| 3.5 | 0.16 |
| 4.5 | 0.23 |
| 5.5 | 0.43 |
| 6.5 | 0.62 |
| 8.0 | 1.10 |
| 9.0 | 1.48 |
| 1" (25 mm) PGV Valve | |
|---|---|
| Flow l/min | Pressure Loss kPa |
| 4 | 8 |
| 20 | 11 |
| 40 | 13 |
| 55 | 16 |
| 75 | 23 |
| 95 | 43 |
| 115 | 62 |
| 135 | 110 |
| 150 | 148 |
PGV Pressure Loss Charts (bar/kPa)
| PGV Pressure Loss in Bar | ||||
|---|---|---|---|---|
| Flow m3/hr | 1½" (40 mm) Globe | 1½" (40 mm) Angle | 2" (50 mm) Globe | 2" (50 mm) Angle |
| 4.5 | 0.2 | 0.2 | 0.1 | 0.1 |
| 5.5 | 0.2 | 0.2 | 0.1 | 0.1 |
| 6.5 | 0.2 | 0.2 | 0.1 | 0.1 |
| 8.0 | 0.2 | 0.2 | 0.1 | 0.1 |
| 9.0 | 0.2 | 0.2 | 0.1 | 0.1 |
| 11.0 | 0.3 | 0.2 | 0.1 | 0.1 |
| 13.5 | 0.3 | 0.3 | 0.1 | 0.1 |
| 18.0 | 0.4 | 0.4 | 0.2 | 0.1 |
| 22.5 | 0.6 | 0.5 | 0.3 | 0.2 |
| 27.0 | 0.8 | 0.8 | 0.4 | 0.3 |
| 30.5 | 0.6 | 0.5 | ||
| 34.0 | 0.7 | 0.6 | ||
| PGV Pressure Loss in kPa | ||||||
|---|---|---|---|---|---|---|
| Flow l/min | 1½" (40 mm) Globe | 1½" (40 mm) Angle | 2" (50 mm) Globe | 2" (50 mm) Angle | ||
| 75 | 20 | 22 | 4 | 9 | ||
| 95 | 20 | 21 | 5.5 | 9 | ||
| 115 | 21 | 21 | 7.5 | 9.5 | ||
| 135 | 22 | 21 | 9 | 10 | ||
| 150 | 25 | 23 | 12 | 11 | ||
| 200 | 27 | 24 | 14 | 12 | ||
| 325 | 47 | 41 | 26 | 19 | ||
| 400 | 65 | 59 | 33 | 24 | ||
| 500 | 96 | 92 | 43 | 32 | ||
| 625 | 56 | 45 | ||||
| 775 | 74 | 64 | ||||
